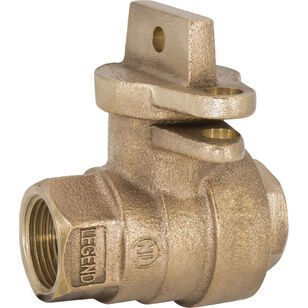

Legend Valve 314-265NL Lock Wing Curb Stop, 1 x 1 in Nominal, FNPT x FNPT, 300 psi, Bronze Body
Legend Valve 314-265NL Lock Wing Curb Stop, 1 x 1 in Nominal, FNPT x FNPT, 300 psi, Bronze Body
Legend Valve Lock Wing Curb Stop, 1 x 1 in Nominal, FNPT x FNPT Connection, 300 psi, Full Port, Material Standard: ASTM B584-UNS C89833, Buna-N Softgoods, Bronze Body, 100 deg F, 3.33 in L, Additional Information: T-5500LWNL Model, Lead-Free, Cast Bronze Head and Stem, Stem Locknut, End Adapter, PTFE-Coated Lead-Free Cast Bronze Ball, 2.78 in Center-To Top, 1.58 in W Head
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$234.41Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Additional InformationT-5500LWNL Model, Lead-Free, Cast Bronze Head and Stem, Stem Locknut, End Adapter, PTFE-Coated Lead-Free Cast Bronze Ball, 2.78 " Center-To Top, 1.58 " W Head
ApplicationFor underground water service installations only, to permit shutoff of the water supply, from the water main to the building
Body MaterialBronze
Connection TypeFNPT x FNPT
Dimensions3.33 " L
IndustryPlumbing
Material StandardASTM B584-UNS C89833
Nominal Size1 x 1
Port TypeFull
Pressure Rating300
Softgoods MaterialBuna-N
Temperature Rating100
Shipping Dimensions (L x W x H)4.7" x 4.8" x 4.5"
Additional Information
ANSI Specified|ANSI Specified|ASME B1.20.1|AWWA C800|NSF 372
Features & Benefits
- Valve body is rated for 300 psi water pressure End connections are manufactured in compliance to the latest version of AWWA C800, for high pressure Lead-free design is suitable for all lead-free potable water installations, in full compliance of the lead-free plumbing law 90 deg operation with enclosed operating head stops Operating head has been drilled to accept stationary rod cotter pin attachment Lock wing allows for locking the valve in the closed position Full port, ball and seat design is superior to plug-type designs Durable, PTFE-coated ball assures positive, bubble tight shut-off, low torque operation and long service life
Legend Valve 314-265NL Lock Wing Curb Stop, 1 x 1 in Nominal, FNPT x FNPT, 300 psi, Bronze Body
BrandLegend Valve
MFG #314-265NL
Keller #1125162
My Part ##
Last Ordered#
$234.41Â /Â ea
