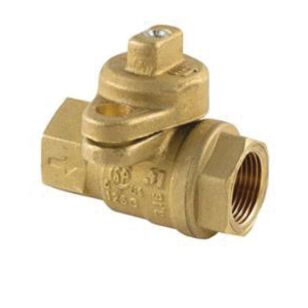

Jomar Valve® 175-LWN Series 240-004B Utility Ball Valve, 3/4 in, Brass, 175 psi
MFG #240-004B
Item #1125583
Mfr. Part #240-004B
UPC #662527291806
Jomar Valve® Utility Ball Valve, 175-LWN Series, 3/4 in Nominal, Full Port, 175 psi, 0.79 in Orifice, 2.91 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, FKM Seal, Brass/PTFE Trim, Buna-N Packing, Brass Handle, Buna-N/FKM/PTFE Softgoods, Finish: Brass-Coated, -40 to 300 deg F, 2.91 in L, Domestic/Import: Domestic, Additional Information: Locking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$46.31 / ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandJomar Valve®
Additional InformationLocking Wing Handle Operator, ANSI B16.33 Material Standard, Brass Ball Material
Body MaterialBrass
Dimensions2.91 " L
Domestic/ImportDomestic
FinishBrass-Coated
Handle MaterialBrass
Inlet to Outlet Length2.91
Nominal Size3/4
Orifice Size0.79
Packing MaterialBuna-N
Port TypeFull
Pressure Rating175
Seal MaterialFKM
Seat MaterialPTFE
Series175-LWN Series
Softgoods MaterialBuna-N/FKM/PTFE
Stem MaterialBrass
Temperature Rating-40 to 300
Top to Inlet Center1.87
Trim MaterialBrass/PTFE
Additional Information
cCSAus Certified|Meets or Exceeds Applicable Part of DOT 192|MSS-SP-110
Features & Benefits
Tamper-resistant locking cap
Full-port design to accommodate industry leading stop changers
Lock wing accommodates standard barrel locks
Maintenance-free
Two FKM O-ring
100% factory leak tested
100% made in Italy
