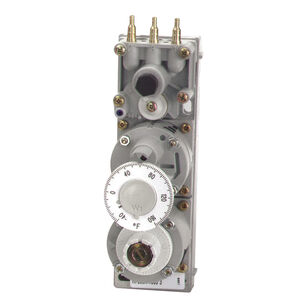

Honeywell RP920A1033/U Pneumatic Controller
Honeywell RP920A1033/U Pneumatic Controller
Honeywell Pneumatic Controller, RP920A Model, 3-13/16 in L, 5-7/8 in H, 3-1/4 in W, 3 - 15 lb/sq-in Input Signal, 3 - 13 lb/sq-in Output, Output Signal Maximum is Mainline -1/2 lb/sq-in, 30 lb/sq-in Maximum Safe Operating, 17 - 21 lb/sq-in 30 lb/sq-in Maximum Safe Mainline Pressure, 40 - 130 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$979.95 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Height5-7/8
IndustryHVAC
Length3-13/16
ModelRP920A
Pressure Rating3 - 15 lb/sq-" Input Signal, 3 - 13 lb/sq-" Output, Output Signal Maximum is Mainline -1/2 lb/sq-", 30 lb/sq-" Maximum Safe Operating, 17 - 21 lb/sq-" 30 lb/sq-" Maximum Safe Mainline
Temperature Rating40 - 130
Width3-1/4
Features & Benefits
- Proportional plus integral control option minimizes offset Miniature diaphragm technology provides high deg of accuracy and reliability Direct acting models can be converted to reverse acting (RA) function in field Field adjustable compensation start point Local or remote setpoint field option, integral action cut-off provides trouble-free automatic startup Transparent cover (optional) provides protection while allowing easy reading of settings and gages Connection size (in) air - combination 5/32 in by 1/4 in barb, optional accessory 14003755-001 (barb fitting for port 4,6,7, or 8 for all RP920)
Documents
Honeywell RP920A1033/U Pneumatic Controller
BrandHoneywell
MFG #RP920A1033/U
Keller #1126933
My Part ##
Last Ordered#
$979.95 / ea
