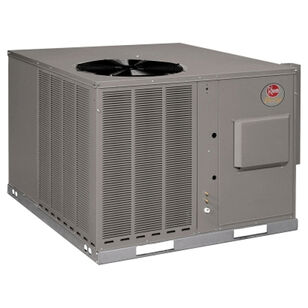

Rheem® RGEA16024AJV062AB Gas/Electric Package Unit, 60000 Btu Input, 24000 Btu/hr Cooling, 49000 Btu/hr Heating Output
Rheem® RGEA16024AJV062AB Gas/Electric Package Unit, 60000 Btu Input, 24000 Btu/hr Cooling, 49000 Btu/hr Heating Output
Rheem® Gas/Electric Package Unit, RGEA16 Prestige® Series, 024AJV062AA Model, 60000 Btu Input BTU Rating, 24000 Btu/hr Cooling, 49000 Btu/hr Heating Output BTU Rating, 208 to 230 VAC Voltage Rating, 18 A Amperage Rating, 1.37/1.92 kW Wattage, 1/6 hp Outdoor Fan, 1/2 hp Indoor Fan HP Rating, 850 rpm Outdoor Fan, 1050 rpm Indoor Fan Rotational Speed, 60 Hz Frequency Rating, 1 Phase, Scroll Compressor Type, 550 to 800 cfm Rating, 12.4 EER Rating, 16 SEER Rating, 81 % AFUE Rating, 2 ton Tonnage, 3 Number of Burners, 2 Number of Stages, 76 dBA Decibel Rating, Panel Mounting Type, Ducted Vent, Ducted or Ductless, Spark Ignition Type, Direct Drive Type, 10 x 9 in Blower Size, 1/2 in Connection, 3/4 in Drain Connection, 1 x 20 x 20 in Filter Size, 82 % Steady State Efficiency, 0.82 Thermal Efficiency, Aluminum, 10 to 40 deg F 1 Stage, 20 to 50 deg F 2 Stage Temperature Rating, 35-15/16 in H x 47-1/2 in W x 52-7/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14,394.28 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating81
Amperage Rating18
ApplicationFor residential applications
Blower Size10 x 9
CFM Rating550 to 800
Compressor TypeScroll
Connection Size1/2
Decibel Rating76
Dimensions35-15/16 " H x 47-1/2 " W x 52-7/16 " D
Drain Connection3/4
Drive TypeDirect
EER Rating12.4
Filter Size1 x 20 x 20
Frequency Rating60
HP Rating1/6 hp Outdoor Fan, 1/2 hp Indoor Fan
Ignition TypeSpark
IndustryHVAC
Input BTU Rating60000
MaterialAluminum
Model024AJV062AA
Mounting TypePanel
Number of Burners3
Number of Stages2
Output BTU Rating24000 Btu/hr Cooling, 49000 Btu/hr Heating
Phase1
Rotational Speed850 rpm Outdoor Fan, 1050 rpm Indoor Fan
SEER Rating16
SeriesRGEA16 Prestige Series
Steady State Efficiency82
Temperature Rating10 to 40 deg F 1 Stage, 20 to 50 deg F 2 Stage
Thermal Efficiency0.82
Tonnage2
Voltage Rating208 to 230
Warranty10 Year Limited
Wattage1.37/1.92
Additional Information
AHRI Certified|ENERGY STAR Certified|cULus Listed
Features & Benefits
- All models feature scroll compressors for maximum efficiency and quiet operation, 5 ton RGEA15 models feature UltraTech™ scroll two-stage compressors with comfort Alert™ diagnostics, high/low pressure switches and hard start kits Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a deep flange to help keep water out of the unit Supply and return air openings feature a 1 Inch H flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Refrigerant connections are conveniently located for easy service diagnostics Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency Inside the easily accessible furnace compartment is the draft inducer motor All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap Easily accessible control box Single-point wiring simplifies installation Our gas/electric package units feature a tubular heat exchanger design Stainless steel heat exchanger is a standard feature on the RGEA16 and is backed by a limited lifetime warranty when installed in a residential application and a 20 years warranty when installed in a commercial application Thermal expansion valve standard on all Models for superior superheat control, reliability and energy efficiency at all operating condition Filter drier standard on all models Rugged base rails are included for improved installation and handling Complete factory charged, wired and run tested Molded compressor plug
