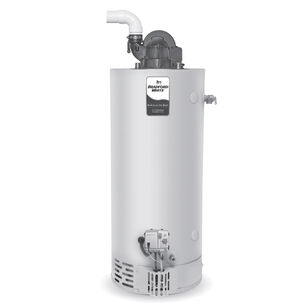

Bradford White® TTW® 19 Series URG2PV50T6N19 Gas Water Heater, 50 gal, 40000 Btu/hr, Natural Gas
Bradford White® TTW® 19 Series URG2PV50T6N19 Gas Water Heater, 50 gal, 40000 Btu/hr, Natural Gas
Bradford White® Gas Water Heater, 19 Series, 50 gal Capacity, 40000 Btu/hr BTU, First Hour Delivery: 75 gal, Energy Factor: 0.72, Recovery Rate: 44 gph, Vent Size: 2 in, 3 in, Vent Type: Power, 3.1 A, 110 V, 60 Hz, NPT Connection, 150 psi Pressure, Natural Gas Fuel, Direct Spark, Pilot Ignition, Vitraglas® Enamel, Lead-Free/Contains Lead: Contains Lead, 180 deg F, 22 in Dia x 65 in H x 27-3/16 in D, Altitude: 10100 ft, 1/2 in Gas Connection, 3/4 in Water Connection, Ultra Low Nox Burner
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Additional Information1/2 " Gas Connection, 3/4 " Water Connection, Ultra Low Nox Burner
Altitude10100 ft
Amperage Rating3.1
BTU Rating40000
Capacity50
Connection TypeNPT
Dimensions22 " Dia x 65 " H x 27-3/16 " D
Energy Factor0.72
FinishVitraglas Enamel
First Hour Delivery75
Frequency Rating60
Fuel TypeNatural Gas
Ignition TypeDirect Spark, Pilot
IndustryPlumbing
Pressure Rating150
Recovery Rate44
Series19 Series
Sub-brandTTW
Temperature Rating180
Vent Size2 ", 3 ""
Vent TypePower
Voltage Rating110
Additional Information
AHRI Certified|CSA Certified
Features & Benefits
- Powerful blower motor - exclusively featuring the AquaVENT MAX™ from Fasco™ is the quietest blower motor in the industry Exhaust gases are vented under positive pressure directly out of the building through the roof or the wall with PVC, ABS or CPVC (maximum equivalent vent length on reverse side) High altitude ready water heaters designed and certified for installations up to 10100 ft out of the box Ultra-Low-NOx burner with primary and secondary air distribution devices - ensures proper air to gas ratio for reduction of NOx generated by the combustion process Defender combustion chamber incorporates the Advanced ScreenLok® technology flame arrestor and large split door design to prevent ignition of flammable vapors outside the water heater Flammable vapor sensor and resettable thermal switch coordinates with control to prevent burner operation if flammable vapors are detected The sensor will also prevent operation if there is ongoing flammable vapors burning inside the combustion chamber Sight window - offers a view into the combustion chamber to observe the operation of the pilot and burner Bradford White® ICON System® intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during standby periods (120 VAC) Vitraglas® Lining with Microban® - an exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® anti-microbial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Hydrojet® total performance system Insulation system non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity Factory installed heat traps design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
Bradford White® TTW® 19 Series URG2PV50T6N19 Gas Water Heater, 50 gal, 40000 Btu/hr, Natural Gas
BrandBradford White®
MFG #URG2PV50T6N19
Keller #1128075
