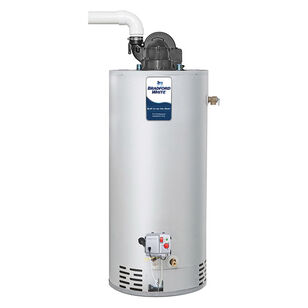

Bradford White® 19 Series TTW RG1PV40S6N19 Gas Water Heater, 40 gal, 40000 Btu/hr, 11.7 kW, Natural Gas
Bradford White® 19 Series TTW RG1PV40S6N19 Gas Water Heater, 40 gal, 40000 Btu/hr, 11.7 kW, Natural Gas
Bradford White® Gas Water Heater, 19 Series, Model: TTW, 40 gal Capacity, 40000 Btu/hr, 11.7 kW, 75 gal First Hour Delivery, 0.68 Energy Factor, 43 gph Recovery Rate, 2 in, 3 in Vent, Power Vent, 3.1 A, 120 V, 60 Hz, NPT Connection, 150 psi, Natural Gas Fuel, Spark to Pilot Ignition System, 20 in Dia x 55-7/16 in H x 25-15/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Amperage Rating3.1
BTU Rating40000
Capacity40
Connection TypeNPT
Dimensions20 " Dia x 55-7/16 " H x 25-15/16 " D
Energy Factor0.68
First Hour Delivery75
Frequency Rating60
Fuel TypeNatural Gas
Ignition SystemSpark to Pilot
ModelTTW
Power Rating11.7
Pressure Rating150
Recovery Rate43
Series19 Series
Vent Size2 ", 3 ""
Vent TypePower
Voltage Rating120
Additional Information
ASHRAE 90.1b|CEC Compliant|CSA Certified
Features & Benefits
- Exclusively featuring the AquaVENT MAX™ from Fasco™ is the quietest blower motor in the industry, this new blower is a lower profile than previous versions and features a more robust electrical connection Designed for installations where atmospheric units cannot be used, exhaust gases are vented under positive pressure directly out of the building through the roof or the wall with PVC, ABS or CPVC (maximum equivalent vent length on reverse side) Water heaters designed and certified for installations up to 10100 ft (3078 m) out of the box, no conversion kit required Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during standby periods (120 VAC) Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting Flashing green LED provides positive indication that pilot is on High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater (excluding RG1PV55H6N and RG2PV75H6N) Electronic sensor prevents burner operation if flammable vapors are detected The sensor will also prevent operation if there is ongoing flammable vapors burning inside the combustion chamber (excluding RG1PV55H6N and RG2PV75H6N) Offers a view into the combustion chamber to observe the operation of the pilot and burner An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank Non-CFC foam covers the sides and top of the tank, reducing heat loss This results in less energy consumption, improved efficiencies and jacket rigidity 3/4 in (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
