cUR Recognized

• Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft and mounting bolts during shipment Large label - the informative product label contains the motor model number in large, easily identifiable type Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability and enhance motor life Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry For customer convenience, Wagner® provides a complete manufacturer cross-reference on the side of every motor carton Insulated disconnects - run capacitor connections are insulated for increased safety The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided Easy to read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct The distributor can identify the stock of motors on the shelf with ease, the application, voltage and horsepower of the motor are clearly visible Extended wires - Wagner® motor wires are thirty inches long The added length makes it easier for the contractor to install the new motor Reversing plug - the electrical reversing plug simplifies rotation direction changes

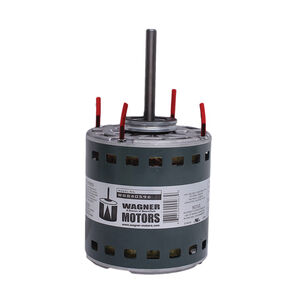

This Wagner® WG840595 direct drive furnace blower motors, 1 hp, 1075/3 rpm, 12.6 FLA, 115 V motor is specially designed to cover a range of applications. The motors are electrically reversible, feature an automatic thermostat overload protector and a standard 48 frame motor casing size. There is a continuous duty, air over on this motor and the 2-1/2 in Dia hub rings are included. This product was made by DiversiTech® for the DiversiTech® branded items.
