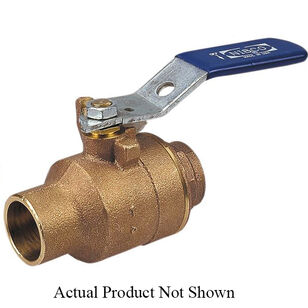

NIBCO S585-70-1-1/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO S585-70-1-1/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO® Ball Valve, S-585-70 Series, 1-1/4 in Nominal, Female Solder Cup Connection, Full Port, 600 psi, Air, Gas, Water Media, Manual Actuator, 1-1/4 in Orifice, 5.06 in Inlet to Outlet Length, 3 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, C65100, C69300, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, Red, 400 deg F, 2.46 in Dia x 9.22 in L x 4.29 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$301.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas
Ball MaterialBrass
Body MaterialBronze
ColorRed
Connection TypeFemale Solder Cup
Dimensions2.46 " Dia x 9.22 " L x 4.29 " H
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length5.06
Material StandardASTM B16 C36000, C65100, C69300
MediaAir, Gas, Water
Nominal Size1-1/4
Operator TypeQuarter-Turn Lever Handle
Orifice Size1-1/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesS-585-70 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center3
Trim MaterialBronze
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO S585-70-1-1/4 BRZ BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NJ8310B
Keller #112913
My Part ##
Last Ordered#
$301.60 / ea
