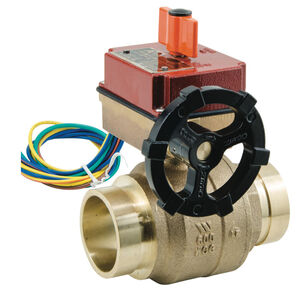

AMES® FIRE & WATERWORKS LFAFBV-FP Series 88005715 Ball Valve With Grooved Ends and Supervisory Switches, Grooved
AMES® FIRE & WATERWORKS LFAFBV-FP Series 88005715 Ball Valve With Grooved Ends and Supervisory Switches, Grooved
AMES® FIRE & WATERWORKS Ball Valve With Grooved Ends and Supervisory Switches, LFAFBV-FP Series, 1-1/2 in Nominal, Grooved Connection, Full Port, Normally Open, Normally Closed, 400 psi, Gear Operator, Copper Silicone Alloy Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, EPDM Softgoods, Lead-Free, 33 to 180 deg F, 6-13/16 in H x 5-4/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,090.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAMES® FIRE & WATERWORKS
ApplicationFor indoor and outdoor applications
Body MaterialCopper Silicone Alloy
ConfigurationNormally Open, Normally Closed
Connection TypeGrooved
Dimensions6-13/16 " H x 5-4/16 " D
IndustryPlumbing
Lead-FreeYes
Nominal Size1-1/2
Operator TypeGear
Packing MaterialPTFE
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
SeriesLFAFBV-FP Series
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating33 to 180
Trim MaterialBrass/PTFE
Warranty1 Year Limited
Additional Information
cULus Listed|FM Approved|NSF Certified|NEPA Approved
Features & Benefits
- Lead free cast copper silicon alloy Machined chrome plated lead free brass ball Slow-close gear operation Integrated supervisory switches with reversible switch box for simplified electrical wiring access Can be wired normally open or normally closed Reversible supervisory switch box simplifies electrical wiring access
Marketing Information
This 1 1/2 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems. This valve features 2-piece lead free construction, integrated supervisory switches, a mechanical indicator flag and grooved ends. The valve is rated 400 psi WOG for indoor and outdoor applications.
AMES® FIRE & WATERWORKS LFAFBV-FP Series 88005715 Ball Valve With Grooved Ends and Supervisory Switches, Grooved
BrandAMES® FIRE & WATERWORKS
MFG #88005715
Keller #1129262
My Part ##
Last Ordered#
$1,090.00 / ea
