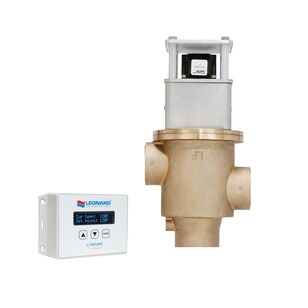

LEONARD® Nucleus® PNV-150-LF Electronic Mixing Valve, 1-1/4 x 1-1/2 in Nominal, 0.25 gpm, 200 psig, 5 to 180 deg F
LEONARD® Nucleus® PNV-150-LF Electronic Mixing Valve, 1-1/4 x 1-1/2 in Nominal, 0.25 gpm, 200 psig, 5 to 180 deg F
LEONARD® Nucleus® Electronic Mixing Valve, 1-1/4 x 1-1/2 in Nominal, 200 psig, 0.25 gpm Flow Rate, 50 to 165 gpm Nominal Capacity, Water Media, 16 in Inlet to Outlet Length, 120 V, 5 to 180 deg F, 19 in W x 14 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,925.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLEONARD®
Dimensions19 " W x 14 " H
Flow Rate0.25
IndustryPlumbing
Inlet to Outlet Length16
MediaWater
Nominal Capacity50 to 165
Nominal Size1-1/4 x 1-1/2
Pressure Rating200
Temperature Rating5 to 180
Voltage Rating120
Additional Information
ASSE 1017|cCSAus Certified|cULus Listed
Features & Benefits
- Digital mixing valve with 1-1/4 in inlet, 1-1/2 in outlet and integral RTD sensor 1-1/4 in NPT inlets, 1-1/2 in NPT outlet (31.75 x 38.1mm) 0.25 gpm (0.95 L/min) minimum flow capacity Controls water temperature to +/-2 deg F in accordance with ASSE 1017 Controls water temperature to +/-2 deg F during times of low/no system demand Automatic Hot/Cold Water shutoff upon cold/hot water inlet supply failure User programmable set point range between 65 and 180 deg F UL Listed control box UL Listed 120 V plug-in power supply with 6 ft cord Simple/intuitive user commissioning and setup Factory assembled and tested
