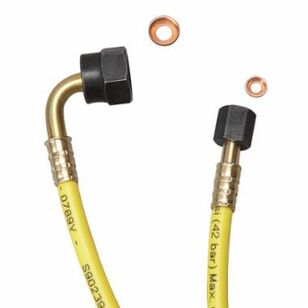

Yellow Jacket® 78736 Pressure Control Hose, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L, Thermoplastic Polymer
Yellow Jacket® 78736 Pressure Control Hose, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L, Thermoplastic Polymer
Yellow Jacket® Pressure Control Hose, 1/4 in Nominal, 0.156 in Inside Diameter, 0.325 in Outside Diameter, 600 lbf/sq-in, -20 to 266 deg F, For Use With: R-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, HCFC R-22, HCFC, CFC Refrigerants, 36 in Length, Thermoplastic Polymer, Yellow, Finish: Black Oxide
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$100.33 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandYellow Jacket®
ColorYellow
FinishBlack Oxide
Inside Diameter0.156
Length36
Map34.75
MaterialThermoplastic Polymer
Nominal Size1/4
Outside Diameter0.325
Pressure Rating600
Suitable For Use WithR-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, HCFC R-22, HCFC, CFC Refrigerants
Temperature Rating-20 to 266
Features & Benefits
- Pressure control hose is constructed of a thermoplastic polymer inner tube and cover to eliminate the vibration failures of copper capillary tube installations The higher temperature ratings up to 266 deg F eliminate the failures caused by maximum loads on rubber hoses Polyester braid reinforcement with high tensile strength and high modulus withstand higher pressures Yellow color makes hose easily visible inside system Improved permeation characteristics Copper gaskets provide the best possible seal Results with other refrigerants will also show superior performance characteristics Usable oil types include polyol ester, alkylbenzene and mineral oils 2 in minimum bend radius
Yellow Jacket® 78736 Pressure Control Hose, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L, Thermoplastic Polymer
BrandYellow Jacket®
MFG #78736
Keller #1131729
