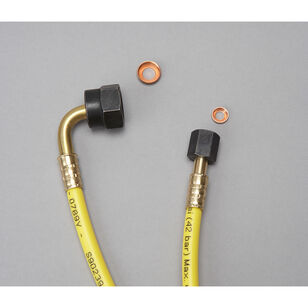

Yellow Jacket® 78860 High-Temperature Pressure Control Hose, 90 deg Angle, 0.156 in ID, 0.325 in OD, 60 in L
Yellow Jacket® 78860 High-Temperature Pressure Control Hose, 90 deg Angle, 0.156 in ID, 0.325 in OD, 60 in L
Yellow Jacket® High-Temperature Pressure Control Hose, 0.156 in Inside Diameter, 0.325 in Outside Diameter, 800 psi, -49 to 266 deg F, 4 in Bend Radius, Connection Size: 1/4 in, Connection Type: 90 deg Angle, Brass Fitting, 60 in Length, 1 Hoses, R-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, R-22 Refrigerant, Thermoplastic Polymer, Additional Information: 4000 psi Burst Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$160.92 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandYellow Jacket®
Additional Information4000 psi Burst Pressure Rating
Bend Radius4
Connection Size1/4
Connection Type90 deg Angle
Fitting MaterialBrass
Inside Diameter0.156
Length60
MaterialThermoplastic Polymer
Number Of Hoses1
Outside Diameter0.325
Pressure Rating800
Refrigerant TypeR-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, R-22
Temperature Rating-49 to 266
Features & Benefits
- The higher temperature ratings up to 266deg F eliminate the failures caused by maximum loads on rubber hoses Polyester braid reinforcement with high tensile strength and high modulus withstand higher pressures Hex nuts are steel and finished with black zinc. Copper gaskets provide the best possible seal Yellow color makes hose easily visible inside system 4000 psi (276 bar) minimum burst, 800 psi (55 bar) maximum working pressure Hex style fittings with 1/4" SAE thread. Straight or 90deg with copper gaskets Operating temperature -49deg to 266deg F (-44deg to 130deg C) Minimum bend radius: 4" (102mm)
Documents
Marketing Information
Pressure control hose is constructed of a thermoplastic polymer inner tube and cover to eliminate the vibration failures of copper capillary tube installations.
