Caleffi

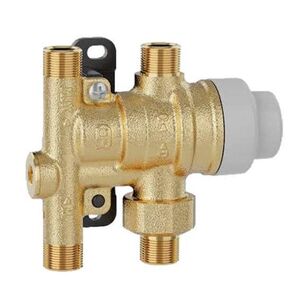

Caleffi SinkMixer™ Series 521201A Thermostatic Mixing Valve, 3/8 in Nominal, PRS Compression, 4 -Port/Way, 150 psi
Caleffi
Caleffi SinkMixer™ Series 521201A Thermostatic Mixing Valve, 3/8 in Nominal, PRS Compression, 4 -Port/Way, 150 psi
MFG #521201A
Item #1131986
Mfr. Part #521201A
UPC #8016615624779
Caleffi Thermostatic Mixing Valve, SinkMixer™ Series, 3/8 in Nominal, PRS Compression Connection, 150 psi, 0.35 to 2.3 gpm Flow Rate, Water Media, Number of Ports/Ways: 4, Brass Body, EPDM Seal, Stainless Steel Trim, ABS, Polyamide Nylon Softgoods, 95 to 195 deg F, 3-1/2 in L x 3-3/16 in W, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$142.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Body MaterialBrass
Connection TypePRS Compression
Dimensions3-1/2 " L x 3-3/16 " W
Domestic/ImportImport
Flow Rate0.35 to 2.3
IndustryPlumbing
MediaWater
Nominal Size3/8
Number of Ports/Ways4
Pressure Rating150
Seal MaterialEPDM
SeriesSinkMixer Series
Softgoods MaterialABS, Polyamide Nylon
Temperature Rating95 to 195
Trim MaterialStainless Steel
Additional Information
ASSE 1070|CSA B125.3-2012|IPC Approved|IRC Approved|NPC Approved|NSF/ANSI 372|NSF/ANSI/CAN 61-2018|UPC Certified
Features & Benefits
- 4-port scald protection point-of-use mixing valve Adjustable thermostatic mixing valve for under sink scald protection Complete with inlet check valves
Marketing Information
CALEFFI, 521201A, SinkMixer™. 4-port scald protection point-of-use mixing valve Adjustable thermostatic mixing valve for under sink scald protection Complete with inlet check valves connection: 3/8" PRS, compression. Maximum operating pressure: 150 psi. Adjustment temperature range: 95 - 120 degF. Maximum inlet temperature: 195 degF. Minimum flow rate: 0.35 gpm. Cv: 0.52. Material: DZR low lead brass.
