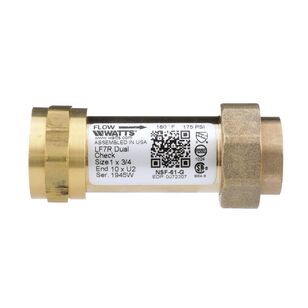

WATTS® LF7R Series 0072207 Dual Check Valve Backflow Preventer, 1 x 3/4 in, MTSF x FNPT, Lead-Free
WATTS® LF7R Series 0072207 Dual Check Valve Backflow Preventer, 1 x 3/4 in, MTSF x FNPT, Lead-Free
WATTS® Dual Check Valve Backflow Preventer, LF7R Series, 1 x 3/4 in Nominal, MTSF x FNPT Connection, 150 psi, Water Media, 4-1/2 in Inlet to Outlet Length, Brass Body, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$225.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBrass
Connection TypeMTSF x FNPT
EA Height5"
EA Length2.25"
EA Weight0.913 lbs.
EA Width2.25"
IndustryPlumbing
Inlet to Outlet Length4-1/2
Lead-FreeYes
MediaWater
Net Content1
Nominal Size1 x 3/4
Pressure Rating150
SeriesLF7R Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)2.25" x 2.25" x 5"
Additional Information
ANSI/ASSE 1024|cCSAus B64.6|NSF/ANSI/CAN 61-G|UPC Certified
Features & Benefits
- Lead free brass body for durability Can be installed vertically or horizontally Compact design Meets ANSI/ASSE Standard 1024
Marketing Information
This 1 IN female meter thread swivel by 3/4 IN union female NPT, lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. The valve consists of a lead free brass body construction, with two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 psi (69 kPa) and maximum working pressure is 175 psi (12 bar).
WATTS® LF7R Series 0072207 Dual Check Valve Backflow Preventer, 1 x 3/4 in, MTSF x FNPT, Lead-Free
BrandWATTS®
MFG #0072207
Keller #1132146
