UL Listed

• 64 L tank for storage and mixing All features shown on user friendly digital display screen 0 to 45 psig pressure set point with adjustable dead band Prevents major floods Tilted 5 in easy fill access on front of tank UL listed power supply plugs into any standard 115 VAC outlet Diaphragm pump can run dry without damage No direct connection to potable water supply eliminates need for backflow prevention Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications Fluid level switch shuts the pump off and enables alarm contacts if the storage tank level gets too low NO/NC alert contacts and LED light enabled when low level, low pressure or high-pressure condition Diverter valve allows easy purging of air on initial start-up and manual mixing of solution Fluid drained for service can easily be put back into the system Provides leak detection

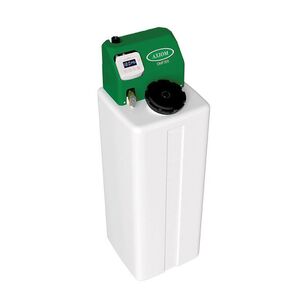

The industry leader for pressurizing closed loop hydronic systems introduces the newest 'PRESSURE PAL' to the Axiom Product Family. The DMF300 utilizes a digital pressure control (0 to 45 psi) with electronic alert contacts. The front fill point makes fluid handling a simple process.
