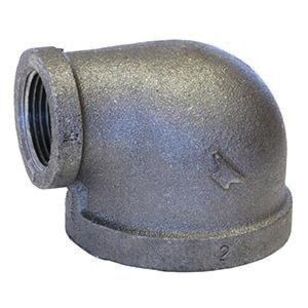

ANVIL® FIG 1101R Series 0310010004 90 deg Reducing Elbow, 1-1/2 in FNPT x 3/4 in FNPT, Iron, Black, 150 lb
ANVIL® FIG 1101R Series 0310010004 90 deg Reducing Elbow, 1-1/2 in FNPT x 3/4 in FNPT, Iron, Black, 150 lb
ANVIL® 90 deg Reducing Elbow, Series: FIG 1101R Series, 90 deg Elbow Fitting, 1-1/2 in Connection Size 1, FNPT Connection Type 1, 3/4 in Connection Size 2, FNPT Connection Type 2, FNPT|FNPT Connection Type, Iron, Malleable Iron Material Construction, Black, Pressure Class: 150 lb, 300 psi, ASME B16.3/B1.20.1 Dimension Standards, -20 to 150 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$68.46 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandANVIL®
Color/FinishBlack
Connection Size 11-1/2
Connection Size 23/4
Connection TypeFNPT|FNPT
Connection Type 1FNPT
Connection Type 2FNPT
Dimension StandardsASME B16.3/B1.20.1
FinishBlack
Fitting Type90 deg Elbow
IndustryPlumbing
MaterialIron
Material ConstructionMalleable Iron
Pressure Class150
Pressure Rating300
SeriesFIG 1101R Series
Temperature Rating-20 to 150
Additional Information
ASTM A153|ASTM A197|FM Approved|NSF/ANSI CAN 61|UL Listed
Documents
Marketing Information
ANVIL® international offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ANVIL® strict quality standards. All ANVIL® class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 psi (6.9 bar).
ANVIL® FIG 1101R Series 0310010004 90 deg Reducing Elbow, 1-1/2 in FNPT x 3/4 in FNPT, Iron, Black, 150 lb
BrandANVIL®
MFG #0310010004
Keller #1134969
My Part ##
Last Ordered#
$68.46 / ea
