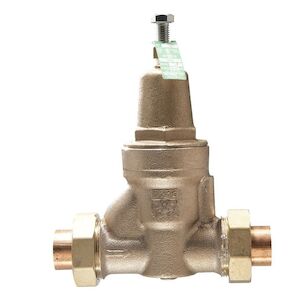

WATTS® 0009683 Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT, 400 psi, 33 to 180 deg F, Brass Body
WATTS® 0009683 Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT, 400 psi, 33 to 180 deg F, Brass Body
WATTS® Pressure Reducing Valve, LFN55B Series, 1-1/2 in Nominal, Connection Type: FNPT Union x FNPT, 400 psi, Water Media, 8-7/8 in Top to Inlet Center, Brass Body, Thermoplastic Seat, Reinforced EPDM Disc, Reinforced EPDM/Thermoplastic Trim, Lead-Free, 33 to 180 deg F, 3-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,829.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBrass
Connection TypeFNPT Union x FNPT
Dimensions3-1/4 " W
Disc MaterialReinforced EPDM
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size1-1/2
Pressure Rating400
Seat MaterialThermoplastic
SeriesLFN55B Series
Temperature Rating33 to 180
Top to Inlet Center8-7/8
Trim MaterialReinforced EPDM/Thermoplastic
Shipping Dimensions (L x W x H)11.875" x 9.13" x 5.25"
Additional Information
ANSI A112.26.2|ASSE 1003|Buy American Act Compliant|CSA B356|IAPMO Listed|NSF to ANSI/NSF Standard 61-G
Features & Benefits
- Serviceable in line Integral stainless steel strainer removable for cleaning Thermoplastic seat and bronze cage Sealed spring cage for accessible outdoor or waterworks pit installations
Documents
Marketing Information
This 1 1/2 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, NPT threaded union female inlet by NPT female outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® 0009683 Pressure Reducing Valve, 1-1/2 in Nominal, FNPT Union x FNPT, 400 psi, 33 to 180 deg F, Brass Body
BrandWATTS®
MFG #0009683
Keller #1135058
My Part ##
Last Ordered#
$1,829.00 / ea
