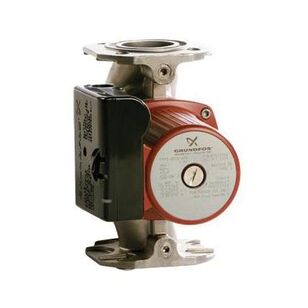

Grundfos UPS Series UPS 50-60 SF 97523137 Circulator Pump, 124 gpm, 395 W, 230 V, 1.4/1.7/1.8 A, 60 Hz
Grundfos UPS Series UPS 50-60 SF 97523137 Circulator Pump, 124 gpm, 395 W, 230 V, 1.4/1.7/1.8 A, 60 Hz
Grundfos Circulator Pump, Series: UPS, Model: UPS 50-60 SF, 124 gpm Flow Rate, 21.33 ft Maximum Head, 395 W Power, 230 V, 1.4/1.7/1.8 A, 60 Hz Frequency, 145.04 psi Maximum, HP Rating: 0.3487 hp, 4 in Connection, Flange Connection, 1 ph Phase, 2 Pole, 32 to 230 deg F, Axial, Radial Bearing, Composite/PES/Stainless Steel, Dimensions: 8-1/2 in H, Additional Information: 8-1/2 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,958.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information8-1/2 " L Port-to-Port
Amperage Rating1.4/1.7/1.8
Bearing TypeAxial, Radial
Connection Size4
Connection TypeFlange
Dimensions8-1/2 " H
Flow Rate124
Frequency Rating60
HP Rating0.3487
IndustryPlumbing
MaterialComposite/PES/Stainless Steel
Maximum Head21.33
Maximum Pressure145.04
ModelUPS 50-60 SF
Number of Poles2
Phase1
Power Rating395
SeriesUPS
Temperature Rating32 to 230
Voltage Rating230
Additional Information
CSA Certified|DIN W.-Nr. 1.4301 Specified|ETL Specified
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate
Marketing Information
Grundfos UPS N circulator pumps have a corrosion-free stainless steel pump housing and are recommended for domestic hot water recirculation and underfloor heating systems. UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos UPS Series UPS 50-60 SF 97523137 Circulator Pump, 124 gpm, 395 W, 230 V, 1.4/1.7/1.8 A, 60 Hz
BrandGrundfos
MFG #97523137
Keller #1135087
