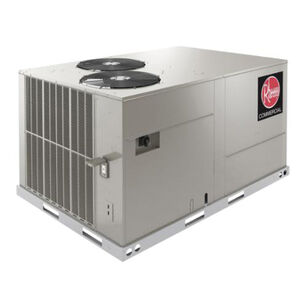

Rheem® RACDZS, Classic ZS120 RACDZS120ADB000AAAA0 Plus Air Conditioner Package Unit, 10 ton Nominal, 460 VAC, 32 A
Rheem® RACDZS, Classic ZS120 RACDZS120ADB000AAAA0 Plus Air Conditioner Package Unit, 10 ton Nominal, 460 VAC, 32 A
Rheem® Plus Air Conditioner Package Unit, Series: RACDZS, Classic, Model: ZS120, 10 ton Nominal Capacity, 118000 Btu/hr Cooling BTU Rating, 460 VAC, 32 A, 34.57 kW Cooling, 1/3 hp Outdoor Fan HP Rating, 1075 rpm Outdoor Fan, 1725 rpm Indoor Fan Rotational Speed, 60 Hz, 3 ph, (1) Scroll Compressor, 4000 cfm Rating, 12.9 IEER Rating, 11.2 EER, 2 Stage, R-410A, HFC, 88 dBA, Medium Static Belt Drive, Outdoor Coil - 25.6 sq-ft Face Area, 23 Fins/in, Indoor Coil - 10.9 sq-ft Face Area, 20 Fins/in Coil Rating, 3/4 in Drain Connection, (4) 2 x 20 x 20 in Filter, Steel, Galvanized, Pre-Painted, 125 deg F Ambient, 90-1/8 in L x 59-1/2 in W x 50 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25,667.38 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating32
CFM Rating4000
Coil RatingOutdoor Coil - 25.6 sq-' Face Area, 23 Fins/", Indoor Coil - 10.9 sq-' Face Area, 20 Fins/"
Compressor Type(1) Scroll
Connection Size3/4 " Drain
Cooling BTU Rating118000
Dimensions90-1/8 " L x 59-1/2 " W x 50 " H
Drive TypeMedium Static Belt
EER Rating11.2
Filter Size(4) 2 x 20 x 20
FinishGalvanized, Pre-Painted
Frequency Rating60
HP Rating1/3 hp Outdoor Fan
IEER Rating12.9
MaterialSteel
ModelZS120
Nominal Capacity10
Number of Stages2
Phase3
Refrigerant TypeR-410A, HFC
Rotational Speed1075 rpm Outdoor Fan, 1725 rpm Indoor Fan
SeriesRACDZS, Classic
Sound Level88
Temperature Rating125 deg F Ambient
Voltage Rating460
Wattage34.57 kW Cooling
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified, ASHRAE 90.1-2010, ASHRAE 90.1-2013 Compliant
Features & Benefits
- Wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Micro channel evaporator and condenser coil PlusOne ServiceSmart package includes: Qwik-Change Flex-Fit Rack, Qwik-Slide Blower Assembly, Qwik-Clean Drain Pan PlusOne diagnostics with dual seven-segment LED display One-piece top cover and one-piece base pan with drawn supply and return opening Two-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection Insulation encapsulated throughout entire unit High performance belt drive motor with variable pitch pulleys and quick adjust belt system New product footprint with matching connections Improved factory lead times Major Series
Rheem® RACDZS, Classic ZS120 RACDZS120ADB000AAAA0 Plus Air Conditioner Package Unit, 10 ton Nominal, 460 VAC, 32 A
BrandRheem®
MFG #RACDZS120ADB000AAAA0
Keller #1136464
