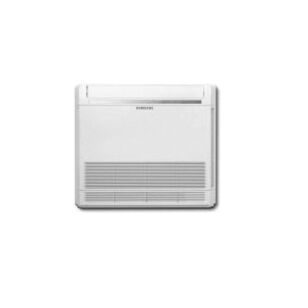

Samsung FJM Series AJ015TNJDCH/AA Console Air Conditioner, 208 to 230 V, 0.35 A, 15000 Btu/hr Btu, 1 ph
Samsung FJM Series AJ015TNJDCH/AA Console Air Conditioner, 208 to 230 V, 0.35 A, 15000 Btu/hr Btu, 1 ph
Samsung Console Air Conditioner, Series: FJM Series, 208 to 230 V, 0.35 A, 35 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 15000 Btu/hr, 254 cfm, 290 cfm, 318 cfm Rating, R-410A, 36 dBA, 39 dBA, 42 dBA, 28-3/8 in Overall Width, 24-7/16 in Overall Height, For Use With: Model AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units, Additional Information: 7-13/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,994.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information7-13/16 " D Dimensions
Amperage Rating0.35
BTU Rating15000
CFM Rating254 cfm, 290 cfm, 318 cfm
Frequency Rating60
IndustryHVAC
Number of Fan Speeds3
Overall Height24-7/16
Overall Width28-3/8
Phase1
Power Rating35
Refrigerant TypeR-410A
SeriesFJM Series
Sound Level36 dBA, 39 dBA, 42 dBA
Suitable For Use WithModel AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units
Voltage Rating208 to 230
Additional Information
ENERGY STAR Certified|ETL Listed|UL 1995
Features & Benefits
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection The unit shall discharge cool air from the upper outlet louver (motorized) while in cooling mode and warm air from the upper and lower (manual adjustment only) outlets while in heating mode System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only) The indoor unit shall be powered by the outdoor unit Electro-static, washable, pleated filter as standard (included) Gravity drain as standard The front panel shall have LED indicator lights, touch controls, IR receiver and one-motorized louver Construction - insulated, HIPS chassis certified to UL94 V0 The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is turbo-type with a single fan motor Three-fan speed settings and auto setting Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor unit shall be two 16 AWG Dual set temperature support when connected to MWR-WG00UN advanced wired controller The system shall integrate with the Samsung Controls Solution
