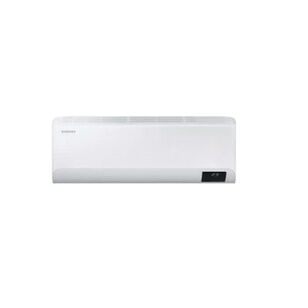

Samsung Quantum 2.0 AR07TSFYBWKNCV Multi-Zone System Air Conditioner, 208 to 230 V, 0.3 A, 7000 Btu/hr BTU, 1 ph -Phase
Samsung Quantum 2.0 AR07TSFYBWKNCV Multi-Zone System Air Conditioner, 208 to 230 V, 0.3 A, 7000 Btu/hr BTU, 1 ph -Phase
Samsung Quantum 2.0 Multi-Zone System Air Conditioner, 208 to 230 V, 0.3 A, 27 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 7000 Btu/hr, 309 cfm, 322 cfm, 336 cfm, 350 cfm Rating, R-410A, 23 to 37 dBA, Wall Mount, Steel, Galvanized, 32-5/16 in Overall Width, 11-3/4 in Overall Height, For Use With: Model AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units, Additional Information: 8-7/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$707.40Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information8-7/16 " D Dimensions
Amperage Rating0.3
BTU Rating7000
CFM Rating309 cfm, 322 cfm, 336 cfm, 350 cfm
FinishGalvanized
Frequency Rating60
IndustryHVAC
MaterialSteel
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-3/4
Overall Width32-5/16
Phase1
Power Rating27
Refrigerant TypeR-410A
Sound Level23 to 37
Suitable For Use WithModel AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units
Voltage Rating208 to 230
Additional Information
ENERGY STAR Certified|ETL Listed|UL 1995
Features & Benefits
- The indoor unit shall have Wi-Fi capability as standard The indoor unit shall be powered by the outdoor unit Indoor unit chassis shall be UL 94-V0 with a galvanized steel mounting bracket The indoor unit shall have easy access to wire, pipe and drain connections via access panel on the bottom of the unit for simple installation and service The heat exchangers shall be mechanically bonded fin to copper tube The indoor fan shall be a single, anti-bacterial cross-flow type Three-fan speed settings and auto setting Automatic (motorized) vertical swing (up/down) louver and manual horizontal swing (left/right) louvers The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS) Dual set temperature support when connected to MWR-WG00UN advanced wired controller The indoor unit shall have a simple connection for overflow detection devices or any other normally closed contact for simple unit shutdown The indoor unit shall ship with a wireless controller, holder and batteries Interconnect control wire between outdoor and indoor unit shall be two 16 AWG System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller (not revenue-grade, for reference only) Auto clean function Seven-segment digital display on front of unit to display temperature and unit status Auto changeover Good sleep mode Quiet mode Dry mode
Samsung Quantum 2.0 AR07TSFYBWKNCV Multi-Zone System Air Conditioner, 208 to 230 V, 0.3 A, 7000 Btu/hr BTU, 1 ph -Phase
BrandSamsung
MFG #AR07TSFYBWKNCV
Keller #1138276
My Part ##
Last Ordered#
$707.40Â /Â ea
