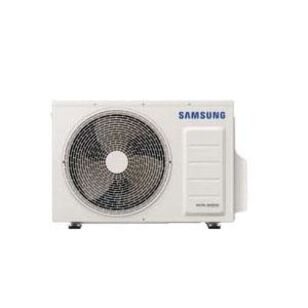

Samsung AR09TSFYBWKXCV Outdoor Mini-Split Air Conditioner, 208-230 V, 1.2/3.1/5.4 A Cooling, 1/4.2/9.1 A Heating, Steel
Samsung AR09TSFYBWKXCV Outdoor Mini-Split Air Conditioner, 208-230 V, 1.2/3.1/5.4 A Cooling, 1/4.2/9.1 A Heating, Steel
Samsung Outdoor Mini-Split Air Conditioner, 208-230 V, 1.2/3.1/5.4 A Cooling, 1/4.2/9.1 A Heating, 60 Hz, 1 ph, 11000 Btu/hr Heating, 9000 Btu/hr Cooling, 403 cfm Heating CFM Rating, 300/335/353/371 cfm Cooling CFM Rating, 13.95 EER Rating, 23.5 SEER, 12 HSPF, BLDC Rotary Compressor, R-410A Refrigerant, Tonnage: 2 ton, 45 dBA Heating Sound Level, Wall Mounting, Steel, Galvanized/Powder-Coated, 5 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 32-5/16 in Overall Length, 8-7/16 in Overall Width, 11-3/4 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,078.92 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating1.2/3.1/5.4 A Cooling, 1/4.2/9.1 A Heating
Compressor TypeBLDC Rotary
Cooling BTU Rating9000
Cooling CFM Rating300/335/353/371
Cooling Operating Temperature14 to 115
EER Rating13.95
FinishGalvanized/Powder-Coated
Frequency Rating60
Heating BTU Rating11000
Heating CFM Rating403
Heating Operating Temperature5 to 75
Heating Sound Level45
HSPF Rating12
IndustryHVAC
MaterialSteel
Mounting TypeWall
Overall Height11-3/4
Overall Length32-5/16
Overall Width8-7/16
Phase1
Refrigerant TypeR-410A
SEER Rating23.5
Tonnage2
Voltage Rating208-230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR Certified
Features & Benefits
- The indoor unit shall feature WindFree™* mode. In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall have Wi-Fi capability as standard Outdoor unit shall provide 208/230V power to indoor unit via 14 AWG X 3 interconnect power cable Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy-access to wire, pipe and drain connections via access panel on the bottom of the unit for simple installation and service The outdoor unit shall be galvanized steel with a baked on powder coated finish for durability The heat exchangers shall be mechanically bonded fin to copper tube The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
Samsung AR09TSFYBWKXCV Outdoor Mini-Split Air Conditioner, 208-230 V, 1.2/3.1/5.4 A Cooling, 1/4.2/9.1 A Heating, Steel
BrandSamsung
MFG #AR09TSFYBWKXCV
Keller #1138281
