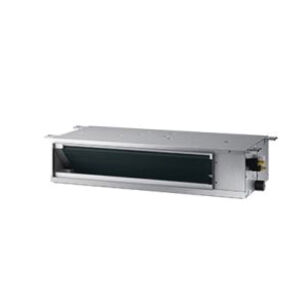

Samsung FJM Series AJ009TNLDCH/AA Slim Duct Unit, 208 to 230 V, 0.45 A, 8900 Btu/hr BTU, 1 ph -Phase, Steel
Samsung FJM Series AJ009TNLDCH/AA Slim Duct Unit, 208 to 230 V, 0.45 A, 8900 Btu/hr BTU, 1 ph -Phase, Steel
Samsung Slim Duct Unit, Series: FJM Series, 208 to 230 V, 0.45 A, 84 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 8900 Btu/hr, 159 cfm, 237 cfm, 328 cfm Rating, R-410A, 23 dBA, 25 dBA, 28 dBA, Steel, Galvanized, 35-7/16 in Overall Width, 7-13/16 in Overall Height, For Use With: Model AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units, Additional Information: 15-7/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,022.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information15-7/16 " D Dimensions
Amperage Rating0.45
BTU Rating8900
CFM Rating159 cfm, 237 cfm, 328 cfm
FinishGalvanized
Frequency Rating60
IndustryHVAC
MaterialSteel
Number of Fan Speeds3
Overall Height7-13/16
Overall Width35-7/16
Phase1
Power Rating84
Refrigerant TypeR-410A
SeriesFJM Series
Sound Level23 dBA, 25 dBA, 28 dBA
Suitable For Use WithModel AJ020TXJ2CH/AA, AJ024TXJ3CH/AA, AJ036TXJ4CH/AA, AJ048TXJ5CH/AA, AJ020TXS3CH/AA, AJ024TXS4CH/AA, AJ030TXS4CH/AA, AJ036TXS4CH/AA Samsung Outdoor Units
Voltage Rating208 to 230
Additional Information
ENERGY STAR Certified|ETL Listed|UL 1995
Features & Benefits
- High voltage terminal block temperature sensor to disable unit in the event overheating of power connection Built-in condensate pump with maximum 29 in lift from the bottom of the unit, check valve and float switch that disables indoor unit during overflow detection System energy consumption can be viewed using Samsung SmartThings mobile app (not revenue-grade, for reference only) The indoor unit shall be powered by the outdoor unit The unit shall be constructed of insulated, galvanized steel The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a twin, backward curved centrifugal type with a single fan motor Three-fan speed settings and auto setting Control signal shall be a DDC-type signal Interconnect control wire between outdoor and indoor unit shall be two 16 AWG Dual set temperature support when connected to MWR-WG00UN advanced wired controller The system shall integrate with the Samsung Controls Solution Field provided filtration is recommended Pressure drop across the filter must be factored into the total ESP
Samsung FJM Series AJ009TNLDCH/AA Slim Duct Unit, 208 to 230 V, 0.45 A, 8900 Btu/hr BTU, 1 ph -Phase, Steel
BrandSamsung
MFG #AJ009TNLDCH/AA
Keller #1138284
My Part ##
Last Ordered#
$1,022.76Â /Â ea
