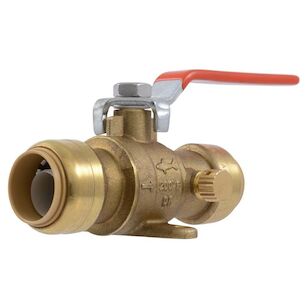

SharkBite™ 24616-0000LF Ball Valve, 3/4 in, Push-to-Connect, Brass, 200 psi
SharkBite™ 24616-0000LF Ball Valve, 3/4 in, Push-to-Connect, Brass, 200 psi
SharkBite™ Ball Valve, 3/4 in Nominal, Connection Type: Push-to-Connect, Full Port, 200 psi, Water Media, 4.86 in Inlet to Outlet Length, 2.08 in Top to Inlet Center, 1 Handles, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Disc, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 200 deg F, Additional Information: Zinc-Plated Handle
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$46.64 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSharkBite™
Additional InformationZinc-Plated Handle
Ball MaterialBrass
Body MaterialBrass
Connection TypePush-to-Connect
Disc MaterialBrass
Handle MaterialSteel
Height4.8
IndustryPlumbing
Inlet to Outlet Length4.86
Lead-FreeYes
Length13.9
MediaWater
Nominal Size3/4
Number of Handles1
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating200
Seal MaterialPTFE
Seat MaterialPTFE
Stem MaterialBrass
Temperature Rating200
Top to Inlet Center2.08
Weight325
Width6
Additional Information
ANSI Z1157|IAPMO Listed|NSF/ANSI 61|NSF/ANSI 372
Features & Benefits
- This SharkBite (1st Generation) ball valve features a drain/vent that allows for water to be drained from the line if needed and mounting tab for stability when attaching this plumbing fixture to other surfaces. Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe. Innovative push-to-connect design makes for quick and easy installation. Faster install time and ease of use reduces installation errors. Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe Can be installed in wet lines Can be rotated for easier and faster installation No special tools, crimping, glue or soldering is needed Ideal for working in tight spaces Rated for 200 psi and 200 deg F (93 deg C)
SharkBite™ 24616-0000LF Ball Valve, 3/4 in, Push-to-Connect, Brass, 200 psi
BrandSharkBite™
MFG #24616-0000LF
Keller #1140881
My Part ##
Last Ordered#
$46.64 / ea
