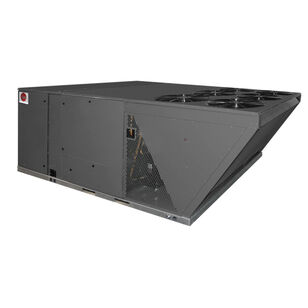

Rheem® B180CL RLNL-B180CL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 180000 Btu/hr Cooling BTU, 78 A
Rheem® B180CL RLNL-B180CL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 180000 Btu/hr Cooling BTU, 78 A
Rheem® Air Conditioner Package Unit, Series: RLNL-B, Model: B180CL, 15 to 25 ton Nominal Capacity, 180000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 78 A, 16.35 kW, 1/3 hp Condenser, 3 hp Blower Motor HP Rating, 1075 to 1725 rpm Rotational Speed, 60 Hz, 3 ph, (2) Scroll Compressor, 6000 cfm Rating, 12.4 IEER Rating, 11.1 EER, R-410A, 91 dBA, Belt Drive, Outdoor Coil - 53.3 sq-ft Face Area, 22 Fins/in, Indoor Coil - 26.67 sq-ft Face Area, 18 Fins/in Coil Rating, 90 A Fuse, Steel, G90 Galvanized, Powder-Painted, 152-1/16 in W x 57 in H x 85-29/32 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$35,945.92 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating78
CFM Rating6000
Coil RatingOutdoor Coil - 53.3 sq-' Face Area, 22 Fins/", Indoor Coil - 26.67 sq-' Face Area, 18 Fins/"
Compressor Type(2) Scroll
Cooling BTU Rating180000
Dimensions152-1/16 " W x 57 " H x 85-29/32 " D
Drive TypeBelt
EER Rating11.1
FinishG90 Galvanized, Powder-Painted
Frequency Rating60
Fuse Rating90
HP Rating1/3 hp Condenser, 3 hp Blower Motor
IEER Rating12.4
IndustryHVAC
MaterialSteel
ModelB180CL
Nominal Capacity15 to 25
Phase3
Refrigerant TypeR-410A
Rotational Speed1075 to 1725
SeriesRLNL-B
Sound Level91
Voltage Rating208 to 230
Wattage16.35
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified, Energy Star Certified
Features & Benefits
- Complete factory charged, wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow High pressure and low pressure/loss of charge protection standard on all models Solid core liquid line filter drier on each circuit One-slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies Cooling operation upto 125 deg F ambient Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream Slide out indoor fan assembly for added service convenience Powder paint finish meets ASTMB117 steel-coated on each side for maximum protection, G90 galvanized One-piece top cover and one-piece base pan with drawn supply and return opening for superior water management High performance belt drive motor with variable pitch pulleys and quick adjust belt system Permanently lubricated evaporator and condenser motors Condenser motors are internally protected, totally enclosed with shaft down design 2 in filter standard with slide-out design 24 V control system with resettable circuit breakers Future technical variations No resistance heat Safe filling capacity (SFC) ASTM B-117 Material Standard
Rheem® B180CL RLNL-B180CL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 180000 Btu/hr Cooling BTU, 78 A
BrandRheem®
MFG #RLNL-B180CL000
Keller #1141029
My Part ##
Last Ordered#
$35,945.92 / ea
