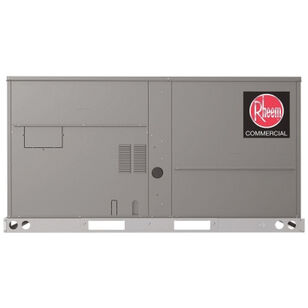

Rheem® Commercial Achiever® RACCZR060AJT000AAAA0 Line Packaged Air Conditioner, 460 VAC, 46 A, 2000 cfm
Rheem® Commercial Achiever® RACCZR060AJT000AAAA0 Line Packaged Air Conditioner, 460 VAC, 46 A, 2000 cfm
Rheem® Line Packaged Air Conditioner, Series: Commercial Achiever®, Model: RACCZR, 460 VAC, 46 A, 5.13 kw, 1/2 hp Outdoor Fan, 1 hp Indoor Fan HP Rating, 60 Hz, 1 ph, Scroll Compressor, 2000 cfm Rating, Multiple Speed, Flush/Panel Mount, Direct Drive, Blower Motor, 3/4 in Connection, 2 x 16 x 16 in Filter, 44-5/8 in W x 41-3/8 in H x 77-7/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,911.46 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating46
ApplicationBACnet Communication, LonWorks Communication, 24 volt Thermostat Compatibility and Zone Sensor Compatibility Applications
CFM Rating2000
Compressor TypeScroll
Connection Size3/4
Dimensions44-5/8 " W x 41-3/8 " H x 77-7/8 " D
Drive TypeDirect
Filter Size2 x 16 x 16
Frequency Rating60
HP Rating1/2 hp Outdoor Fan, 1 hp Indoor Fan
IndustryHVAC
ModelRACCZR
Motor TypeBlower
Mounting TypeFlush/Panel
Number of SpeedsMultiple
Phase1
SeriesCommercial Achiever
Voltage Rating460
Wattage5.13
Additional Information
AHRI Certified, ASHRAE 90.1 2016 Compliant, cULus Listed, ISO 9001:2015
Features & Benefits
- Factory charged with R410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Model RACC has a single-stage compressor Convertible airflow - vertical downflow or horizontal sideflow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Micro channel evaporator and condenser coil Plus One® ServiceSmart package includes - Qwik-Change Flex-Fit Rack™, Qwik-Slide blower Assembly™, Qwik-Clean drain Pan™ Over-flow condensate sensor Plus One® diagnostics with dual 7-segment LED display to meet code compliance One-piece top cover and base pan with drawn supply and return opening 2-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in smart logic Insulation encapsulated throughout entire unit
Documents
Rheem® Commercial Achiever® RACCZR060AJT000AAAA0 Line Packaged Air Conditioner, 460 VAC, 46 A, 2000 cfm
BrandRheem®
MFG #RACCZR060AJT000AAAA0
Keller #1144895
My Part ##
Last Ordered#
$13,911.46 / ea
