LL Compliant NSF/ANSI 372

• Maximum Working Pressure 200 psi @ 230 degrees F Maximum temperature rating 250 degrees F at 150 psi Lead-free* PTFE Seats EPDM O-ring Third-party certified to NSF/ANSI 61 and 372

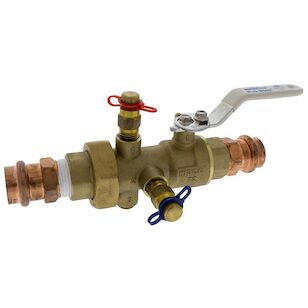

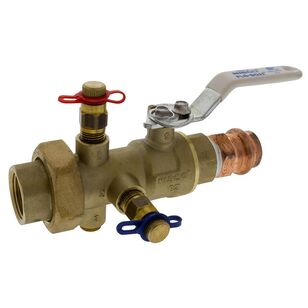

NIBCO makes it easy to balance mechanical and plumbing systems with our new lead-free and dezincification-resistant manual balancing valve. Our lead-free 1805 Series fixed orifice manual balancing valve is faster and easier to set because it does not require any special calculators or meters. Integral pressure temperature ports provide a direct readout across the orifice; optimum flow is quickly and accurately determined by simply measuring the differential pressure. The NIBCO pecent 1805 manual balancing valves are equipped with a union end that will provide up to a double reduction in inlet connection size. A isolation feature and a memory stop is also provided for system maintenance. The integral memory stop will return the system its origional setting upon completionThe NIBCO pecent lead-free manual balancing valve provides the ultimate solution for a wide range of application requirements to ensure a balanced plumbing system. NIBCO valves and components are backed by the NIBCO 5-year 125% limited warranty.
