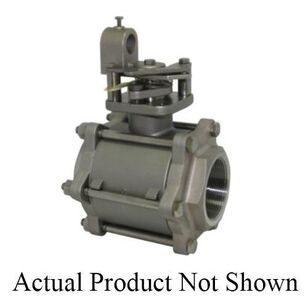

Apollo® 86R-100 Series 86R-100-01 Ball Valve With Actuator Ready ISO 5211 Mounting Pad, 3 in, NPT, Stainless Steel
Apollo® 86R-100 Series 86R-100-01 Ball Valve With Actuator Ready ISO 5211 Mounting Pad, 3 in, NPT, Stainless Steel
Apollo® Ball Valve With Actuator Ready ISO 5211 Mounting Pad, 86R-100 Series, 3 in Nominal, NPT Connection, Full Port, Standard, 800 psig, Gas, Water Media, 3 in Orifice, 8 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Lever Handle Operator, 996 Cv Flow Coefficient (Cv), Material Standard: ASTM A276, ASTM A351 Grade CF8M, Stainless Steel Body, RPTFE Seat, 316 Stainless Steel Stem, MPTFE Seal, MPTFE Packing, 304 Stainless Steel Handle, 316 Stainless Steel Ball, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,223.12 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Ball Material316 Stainless Steel
Body MaterialStainless Steel
ConfigurationStandard
Connection TypeNPT
Domestic/ImportDomestic
Flow Coefficient (Cv)996
Handle Material304 Stainless Steel
IndustryPlumbing
Inlet to Outlet Length8
Material StandardASTM A276, ASTM A351 Grade CF8M
MediaGas, Water
Nominal Size3
Operator TypeLever Handle
Orifice Size3
Packing MaterialMPTFE
Port TypeFull
Pressure Rating800
Seal MaterialMPTFE
Seat MaterialRPTFE
Series86R-100 Series
Stem Material316 Stainless Steel
Top to Inlet Center8.8
Additional Information
MSS SP-110 Compliant|NACE MR-01-75 (2000)|MR0103 (2012)|API 608|MSSP-25/72
Features & Benefits
- Multi-piece packing set Blowout-proof stem design In line repairable Adjustable packing gland Investment cast components Reinforced seats and seals
Documents
Marketing Information
The 86R-100 Stainless Steel 3 Piece Full Port Ball Valve with Actuator Ready ISO Mounting Pad provides a premium solution for fluid flow management. This valve offers a blowout-proof stem design and the ability for in-line repair, emphasizing both safety and ease of maintenance. Its adjustable packing gland and consistently cast components ensure durability, while reinforced seats and seals, as well as a full port configuration, enhance its functionality. , Multi-piece packing set, ISO mounting pad, Blowout-proof stem design, In-line repairable, Adjustable packing gland, Consistent cast components, Reinforced seats and seals, Full port configuration
Apollo® 86R-100 Series 86R-100-01 Ball Valve With Actuator Ready ISO 5211 Mounting Pad, 3 in, NPT, Stainless Steel
BrandApollo®
MFG #86R10001
Keller #1145351
My Part ##
Last Ordered#
$4,223.12 / ea
