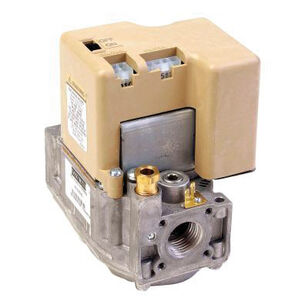

resideo SV9501M2528 Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 150 cfh Nominal, Natural Gas, 0.5 psi
resideo SV9501M2528 Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 150 cfh Nominal, Natural Gas, 0.5 psi
resideo Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 150 cfh Nominal Capacity, Natural Gas, Intermittent Hot Surface Pilot Ignition, 0.5 psi, -40 to 79 deg C, 24 VAC, 0.2 A, 50 Hz, 60 Hz, 4.1 in Overall Length, 3.2 in Overall Width, 4.9 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,005.86 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating0.2
ApplicationFor a wide range of gas fired appliances including residential furnaces, roof-top furnaces, residential boilers, unit heaters, infrared heaters, space heaters and commercial cooking units
End TypeNPT
Frequency Rating50 Hz, 60 Hz
Gas TypeNatural Gas
Ignition TypeIntermittent Hot Surface Pilot
IncludesNatural to LP Conversion Kit, Extension Harness
IndustryHVAC
Inlet Size1/2
Nominal Capacity150
Outlet Size1/2
Overall Height4.9
Overall Length4.1
Overall Width3.2
Pressure Rating0.5
Temperature Rating-40 to 79
Voltage Rating24
Additional Information
CSA 112395 Certified
Features & Benefits
- Ignition sequence includes timed trial for ignition 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically
Documents
Marketing Information
The SmartValve® System controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve® System is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 intermittent pilot burners used with the original controls on the appliance.
resideo SV9501M2528 Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 150 cfh Nominal, Natural Gas, 0.5 psi
BrandHoneywell
MFG #SV9501M2528/U
Keller #114580
