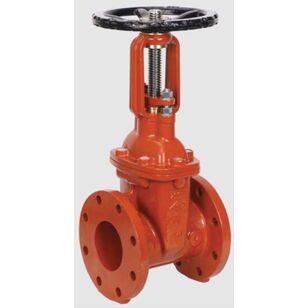

SCI® 35FW Series 017135FW040 Gate Valve, 4 in, Flanged, Ductile Iron, 300 CWP
SCI® 35FW Series 017135FW040 Gate Valve, 4 in, Flanged, Ductile Iron, 300 CWP
SCI® Gate Valve, 35FW Series, 4 in Nominal, Flanged Connection, 300 CWP, Handwheel Actuator, 9 in Inlet to Outlet Length, 22.56 in Top to Inlet Center, Ductile Iron Body, Stainless Steel Stem, Stainless Steel Trim, EPDM Packing, Ductile Iron Handle, EPDM Softgoods, Handwheel Operator, Material Standard: ASTM A536 65-45-12, ASTM B124 C37700, B584, C89833, Lead-Free, Finish: Epoxy-Coated, 9 in L, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,462.27 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSCI®
Actuator TypeHandwheel
Body MaterialDuctile Iron
Connection TypeFlanged
Dimensions9 " L
Domestic/ImportImport
FinishEpoxy-Coated
Handle MaterialDuctile Iron
Inlet to Outlet Length9
Material StandardASTM A536 65-45-12, ASTM B124 C37700, B584, C89833
Nominal Size4
Operator TypeHandwheel
Packing MaterialEPDM
Pressure Rating300
Series35FW Series
Softgoods MaterialEPDM
Stem MaterialStainless Steel
Top to Inlet Center22.56
Trim MaterialStainless Steel
Additional Information
AWWA C515|cULus Listed|FM Approved|NSF/ANSI 61, 372
Features & Benefits
- Ductile iron body and bonnet Wax encapsulated stainless cap screws Fusion bonded epoxy-coating AWWA C550 Grooved stem for tamper switch Tapped and plugged
SCI® 35FW Series 017135FW040 Gate Valve, 4 in, Flanged, Ductile Iron, 300 CWP
BrandSCI®
MFG #4349003820
Keller #1145855
My Part ##
Last Ordered#
$1,462.27 / ea
