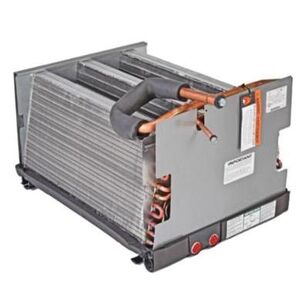

Rheem® RCBA-3765T Universal Replacement Indoor Evaporator Coil, 2.5 to 3 ton, Flowcheck Standard Coil, 2.5 to 3 ton
Rheem® RCBA-3765T Universal Replacement Indoor Evaporator Coil, 2.5 to 3 ton, Flowcheck Standard Coil, 2.5 to 3 ton
Rheem® Universal Replacement Indoor Evaporator Coil, RCBA Value Series, 2.5 to 3 ton Nominal Capacity, 30000 to 36000 Btu/hr BTU Rating, Horizontal, Uncased, Upflow/Downflow Configuration, 1000 to 1200 cfm Rating, 10 SEER Rating, 2.5 to 3 ton Tonnage, R-410A Refrigerant Type, Flowcheck Standard Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat x FNPT, 1 Number of Rows, 6 Number of Slabs, 7.6 sq-ft Face Area, 65 in Orifice Size, 18 in Fin Size, Copper, Tin-Plated, 13-25/32 in H x 15-3/4 in W Dimensions, Flowcheck Piston Metering Device Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,312.30 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationFlowcheck Piston Metering Device
BTU Rating30000 to 36000
CFM Rating1000 to 1200
Coil TypeFlowcheck Standard
ConfigurationHorizontal, Uncased, Upflow/Downflow
Connection Size3/8 ", 3/4 "
Connection TypeSweat x FNPT
Dimensions13-25/32 " H x 15-3/4 " W
Face Area7.6
Fin Size18
FinishTin-Plated
IndustryHVAC
MaterialCopper
Nominal Capacity2.5 to 3
Number of Rows1
Number of Slabs6
Orifice Size65
Refrigerant TypeR-410A
SEER Rating10
SeriesRCBA Value Series
Tonnage2.5 to 3
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- Constructed of enhanced aluminum fins bonded to inner grooved copper tubing Coils have sweat fitting refrigerant connections Primary condensate drain connections are 3/4 in FNPT Coils are ARI certified for system application with a wide variety of Rheem® Value Series outdoor units Condensate drain pan is constructed of a high-grade, heat-resistant, corrosion-free polymer material
Marketing Information
Rheem® Value Series indoor coils are designed for use with Rheem® Value Series outdoor units in up flow, down flow and horizontal configurations. The MultiFlex® coils provide nominal capacities ranging from 18000 to 60000 Btu/hr. The patented single-row, single-coil pleated concept results in extremely low pressure drops and corresponding easy cleaning. Drain connections may be made from either side of the coil.
