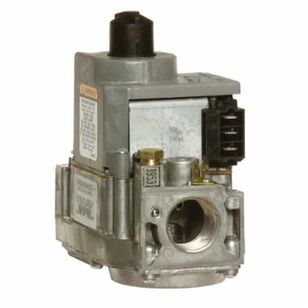

resideo VR8345M4302/U Standard Opening Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, Natural Gas, 1/2 psi
resideo VR8345M4302/U Standard Opening Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, Natural Gas, 1/2 psi
resideo Standard Opening Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, Natural Gas, Direct, Intermittent Pilot Ignition, 1/2 psi, -40 to 175 deg F, 24 V, 0.7 A, 50/60 Hz, 1/4 in Male Quick-Connect Electrical Connection, 2.69 in Overall Length, 4.06 in Overall Width, 5.38 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$436.44Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating0.7
Electrical Connection1/4 " Male Quick-Connect
End TypeNPT
Frequency Rating50/60
Gas TypeNatural Gas
Ignition TypeDirect, Intermittent Pilot
Inlet Size3/4
Outlet Size3/4
Overall Height5.38
Overall Length2.69
Overall Width4.06
Pressure Rating1/2
Temperature Rating-40 to 175
Voltage Rating24
Shipping Dimensions (L x W x H)212" x 184" x 250"
Additional Information
CSA File No. 112395 MCCZ2.MH5323|UL Listed
Features & Benefits
- Control includes manual valve, two-automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter Replaces many IP, HSI or DSI gas control For use with natural or manufactured gas or LP gas Includes converter kit to adapt from natural to LP gas Compact size All adjustments and wiring connections accessible from top of control 4 in swing radius allows easy rotation into position inside the tightest furnace vestibules Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper Internal inlet screen blocks contaminants in gas line from entering valve
Marketing Information
The universal electronic ignition gas valve by resideo helps you be ready for work on any system intermittent pilot, direct spark ignition or hot surface pilot with just one gas valve. The high Btu/hr capacity and multi-poise-mounting make this valve even more versatile for the work you encounter each day.
resideo VR8345M4302/U Standard Opening Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, Natural Gas, 1/2 psi
BrandHoneywell
MFG #VR8345M4302/U
Keller #114778
