• TOP - Available in round or square in a variety of sizes and materials, each of which allows maximum flow, sanitation and serviceability. See individual series for proper selection GRATE - Furnished A.R.E.-coated cast iron, stainless steel or nickel bronze. Each is ultimately designed for smooth flow into the drain body. Regularly furnished with a full grate, also available are half grate and three-quarter grates. MEMBRANE CLAMP - Provided for applications in finished floors which incorporate a waterproofing membrane. Used to secure the membrane to the drain body, the flashing clamp provides a watertight seal at the drain. BODY - Cast iron with A.R.E. coating inside giving a smooth finish which allows for easy drainage as well as increased sanitation. Easily cleaned because of the smooth finish, the drains are highly functional as well as aesthetically pleasing. DOME STRAINER - Minimizes splashing as well as preventing debris from entering the drainage lines. The dome also allows for maximum water flow. WEEPHOLES - Provided when the body is specified with a flange. Weepholes allow for the drainage of entrapped water which seeps down the outside of the body.

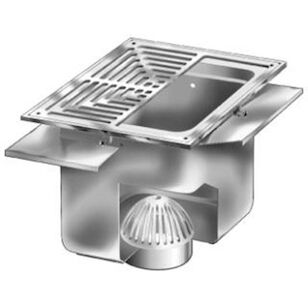

MIFAB® FS1940-FL Series, 12” x 12” x 10” deep 16 gauge, All Type 304 (CF8) stainless steel sanitary floor area and indirect waste drain complete with cast stainless steel secured rim and grate with Allen key vandal proof stainless steel screws, stainless steel anchor flange with weepholes and anti-splash dome strainer.
