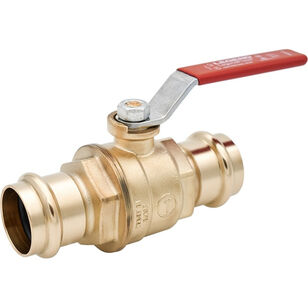

LEG 101-207NL 1-1/2 PRESS BALL VALVE
LEG 101-207NL 1-1/2 PRESS BALL VALVE
Legend Valve Ball Valve, 1-1/2 in Nominal, LegendPress Connection, Full Port, 400 psi, 6.11 in Inlet to Outlet Length, 2.77 in Top to Inlet Center, Handle Operator, Material Standard: CW509L, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, EPDM/FKM Softgoods, Lead-Free, Red, 250 deg F, 4.21 in H x 8.44 in W, Additional Information: Model P-201NL
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$158.53Â /Â ea
In Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Additional InformationModel P-201NL
Ball MaterialBrass
Body MaterialBrass
ColorRed
Connection TypeLegendPress
Dimensions4.21 " H x 8.44 " W
Handle MaterialSteel
Inlet to Outlet Length6.11
Material StandardCW509L
Nominal Size1-1/2
Operator TypeHandle
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
Softgoods MaterialEPDM/FKM
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center2.77
Shipping Dimensions (L x W x H)10.5" x 7.1" x 22.1"
Additional Information
ANSI/ASME B16.51|NSF/ANSI 61, 372
Documents
Marketing Information
Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing. Coiled (annealed) soft copper tubing is not recommended, but can be used if ends are made round. Compatible with commercially-available VUS profile jaws. Deeper tubing sockets at each connection provide extra stability during the pressing process.
LEG 101-207NL 1-1/2 PRESS BALL VALVE
BrandLegend Valve
MFG #101-207NL
Keller #1148940
My Part ##
Last Ordered#
$158.53Â /Â ea
