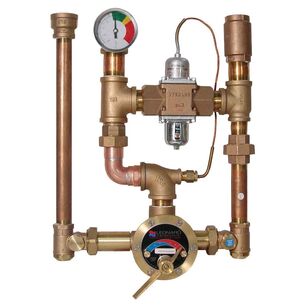

LEONARD® TM-850-LF-RF Emergency Mixing Valve System With Temperature Override Protection, 1-1/4 in Nominal, 20 gpm
LEONARD® TM-850-LF-RF Emergency Mixing Valve System With Temperature Override Protection, 1-1/4 in Nominal, 20 gpm
LEONARD® Emergency Mixing Valve System With Temperature Override Protection, 1-1/4 in Nominal, 125 psi, 20 gpm Flow Rate, Water Media, Finish: Rough Bronze, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,530.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLEONARD®
FinishRough Bronze
Flow Rate20
IndustryPlumbing
MediaWater
Nominal Size1-1/4
Pressure Rating125
Temperature Rating180
Additional Information
ANSI Z358.1|ASSE 1071|CSA Certified
Features & Benefits
- DURA-trol® solid bimetal thermostat directly linked to valve porting Primary valve can be set to the correct temperature for the application DURA-trol® is highly responsive and cannot be damaged by extremes in temperature Locking temperature regulator to prevent accidental movement set for 85 deg F Primary mixing valve will close down on failure of cold water supply Primary Mixing Valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply Adjustable high temperature limit stop set for 90 deg F Dial thermometer (range 0 to 140 deg F, -10 to 60 deg C) Union Angle checkstops with strainers on inlets Secondary Thermostatic Control factory locked at 90 deg F, 32 deg C(adjustable from 40 to 100 deg F, 4 to 32 deg C) to allow cold water to enter the outlet side of the Primary mixing valve Rough bronze finish To determine the amount of Hot Water needed to maintain a steady outlet temperature for 15 minutes, click Hot Water Requirements, this guide is not meant to be used as a means to size the hot water heaters but rather to illustrate consumption
LEONARD® TM-850-LF-RF Emergency Mixing Valve System With Temperature Override Protection, 1-1/4 in Nominal, 20 gpm
BrandLEONARD®
MFG #TM-850-LF-RF
Keller #1152270
My Part ##
Last Ordered#
$6,530.00 / ea
