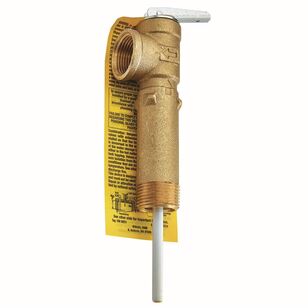

WATTS® 100XL Series LLL100XL 100/180 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 100 psi
WATTS® 100XL Series LLL100XL 100/180 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 100 psi
WATTS® Temperature and Pressure Relief Valve, 100XL Series, 3/4 in Nominal, MNPT x FNPT Connection, 100 psi, Water Media, Bronze Body, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$65.50 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialBronze
Connection TypeMNPT x FNPT
MediaWater
Nominal Size3/4
Pressure Rating100
Series100Xl Series
Temperature Rating180
Shipping Dimensions (L x W x H)2.5" x 1.44" x 7.75"
Features & Benefits
- Self closing safety valve for hot water heaters Unique thermostat with special thermo-bonded coating Bronze body construction Stainless steel spring
Documents
Marketing Information
This 3/4 in extra extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. It is suitable for water heaters with up to 3 in (76.2 mm) of insulation. The temperature relief is 180 F (82.2C), the pressure relief setting is 100 psi (6.9 bar).
WATTS® 100XL Series LLL100XL 100/180 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 100 psi
BrandWATTS®
MFG #0066436
Keller #1152538
