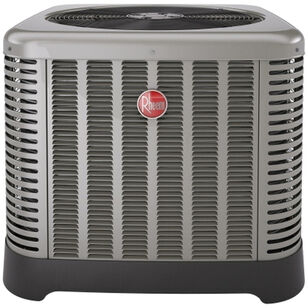

Rheem® RP1442CC1NA Heat Pump Condenser, 3.5 ton, 42000 Btu/hr BTU, 208-230 V, 1/5 hp, 3 ph Phase
Rheem® RP1442CC1NA Heat Pump Condenser, 3.5 ton, 42000 Btu/hr BTU, 208-230 V, 1/5 hp, 3 ph Phase
Rheem® Heat Pump Condenser, RP14 Model, 208-230 V Voltage Rating, 1/5 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 42000 Btu/hr BTU Rating, 3376 cfm Rating, Scroll Compressor Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, Direct Drive Type, 3.5 ton Tonnage, 55 deg F Temperature Rating, 33.75 in L x 33.75 in W x 35.16 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,523.46 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
BTU Rating42000
CFM Rating3376
Compressor TypeScroll
Dimensions33.75 " L x 33.75 " W x 35.16 " H
Drive TypeDirect
Frequency Rating60
HP Rating1/5
IndustryHVAC
Liquid Line Size3/8
ModelRP14
Phase3
Suction Line Size7/8
Temperature Rating55
Tonnage3.5
Voltage Rating208-230
Warranty10 Year
Additional Information
cULus Listed|AHRI Certified
Features & Benefits
- New composite base pan-dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coated paint system for a long-lasting professional finish Scroll compressor-uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics-increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne® expanded valve space-3 in, 4 in, 5 in service valve space-provides a minimum working area of 27 sq-in for easier access PlusOne® triple service access-15 in wide, industry leading corner service access makes repairs easier and faster, the two fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two fastener opening-provides access to the high and low pressure External gauge port access-allows easy connection of "low loss" gauge ports Single-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain out of the box performance 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
Documents
Rheem® RP1442CC1NA Heat Pump Condenser, 3.5 ton, 42000 Btu/hr BTU, 208-230 V, 1/5 hp, 3 ph Phase
BrandRheem®
MFG #RP1442CC1NA
Keller #1154512
My Part ##
Last Ordered#
$6,523.46 / ea
