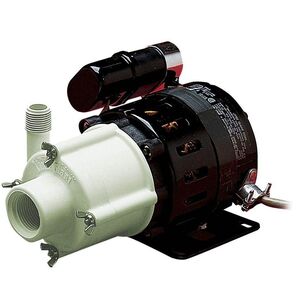

Little GIANT® 5-MD-SC 583503 Magnetic Drive Pump, 17.5 gpm, 2 A, 115 V, 1/8 hp
Little GIANT® 5-MD-SC 583503 Magnetic Drive Pump, 17.5 gpm, 2 A, 115 V, 1/8 hp
Little GIANT® Magnetic Drive Pump, Model: 5-MD-SC, 1 in Suction, 1/2 in Discharge, 17.5 gpm Flow Rate, 2 A, 115 V, 1/8 hp, 1 ph Phase, 60 Hz, 3000 rpm, Maximum Feet of Head: 27-1/2 ft, 6 ft Cord Length, 208 W, 150 deg F Maximum Temperature, 11.9 psi Working Pressure, Polypropylene Impeller, Polypropylene Body, 8.7 in L x 5.5 in W x 5.5 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,096.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Amperage Rating2
Body MaterialPolypropylene
Cord Length6 ft
Dimensions8.7 " L x 5.5 " W x 5.5 " H
Discharge Size1/2"
Flow Rate17.5
Frequency Rating60
HP Rating1/8
Impeller MaterialPolypropylene
Maximum Feet of Head27-1/2 ft
Maximum Temperature150
Model5-MD-SC
Phase1
Power Rating208
Speed Rating3000
Suction Size1"
Voltage Rating115
Working Pressure11.9
Additional Information
cCSAus Certified|UR Listed
Features & Benefits
- 1.1 specific gravity Thermally protected, open, fan cooled, permanent split capacitor motor 6 ft power cord with 3-prong plug
Documents
Marketing Information
Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan cooled motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. The Little Giant MD-SC series features leak-proof, seal less magnetic drives and are designed for inline, non-submersible use. Volute, magnet housing and impeller are glass filled polypropylene for excellent chemical-resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start up and stop of pump.
Little GIANT® 5-MD-SC 583503 Magnetic Drive Pump, 17.5 gpm, 2 A, 115 V, 1/8 hp
BrandLittle GIANT®
MFG #583503
Keller #1154746
