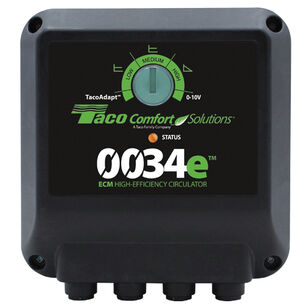

Taco Comfort Solutions® 0034e™ 00e® Series 0034E-SF2 Circulator Pump, 50 gpm, 10 to 170 W, 115/208/230 V, 1.48 A
Taco Comfort Solutions® 0034e™ 00e® Series 0034E-SF2 Circulator Pump, 50 gpm, 10 to 170 W, 115/208/230 V, 1.48 A
Taco Comfort Solutions® Circulator Pump, Series: 00e® Series, 50 gpm, 34 ft Maximum Head, 10 to 170 W, 115/208/230 V, 1.48 A, 50/60 Hz, 150 psi Maximum, 830 to 4300 rpm Motor Speed Rating, 1 ph, 14 to 230 deg F, Stainless Steel, 7.05 in H x 6.22 in W x 8.05 in D, Additional Information: ECM Motor Type, Composite Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,606.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationECM Motor Type, Composite Impeller Material
Amperage Rating1.48
Dimensions7.05 " H x 6.22 " W x 8.05 " D
Flow Rate50
Frequency Rating50/60
IndustryPlumbing
MaterialStainless Steel
Maximum Head34
Maximum Pressure150
Motor Speed Rating830 to 4300
Phase1
Power Rating10 to 170
Series00e Series
Temperature Rating14 to 230
Voltage Rating115/208/230
Additional Information
cCSA C22.2 File No. 108|FCC Approved|NSF/ANSI 61/372|UL 778
Features & Benefits
- Replaces all single-speed and three-speed circulators in its class Rotatable control cover to simplify installation BIO Barrier® protects the pump from system contaminants SureStart® automatic unblocking and air purging mode Use with a Taco ZVC zone valve control or SR switching relay for On/Off operation Nut grabber feature on flanges for easier fit-up Dual electrical knockouts and removable quick-connect terminal strip for easy wiring Double insulated Whisper quiet operation
Marketing Information
The 0034e™ ECM high efficiency circulators are high-performance, variable speed, wet rotor circulators with high efficiency ECM permanent magnet technology. Their variable speed performance curves are equivalent to the Taco 009, 0010, 0011, 0012, 0012 three-speed, 0013, 0013 three-speed and 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The ECM technology reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. The 0034e™ comes with an easy-to-use dial while the 0034ePlus has an intuitive digital user interface.
Taco Comfort Solutions® 0034e™ 00e® Series 0034E-SF2 Circulator Pump, 50 gpm, 10 to 170 W, 115/208/230 V, 1.48 A
BrandTaco Comfort Solutions®
MFG #0034E-SF2
Keller #1154974
My Part ##
Last Ordered#
$1,606.00 / ea
