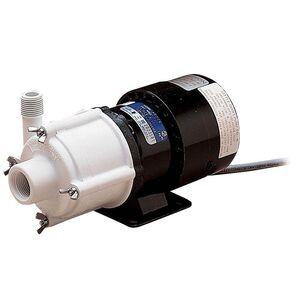

Little GIANT® 581513 Magnetic Drive Pump, 12.5 gpm, 1.2 A, 230 VAC, 1/12 hp
Little GIANT® 581513 Magnetic Drive Pump, 12.5 gpm, 1.2 A, 230 VAC, 1/12 hp
Little GIANT® Magnetic Drive Pump, Model: 3-MD-SC, 3/4 in Suction, 1/2 in Discharge, 12.5 gpm Flow Rate, 1.2 A, 230 VAC, 1/12 hp, 1 ph, 60 Hz, Speed Rating: 3000 rpm, 21.9 ft Maximum Feet of Head, 6 ft L Cord, Power Rating: 190 W, 150 deg F Maximum, Working Pressure: 9.5 psi, Polypropylene Impeller, Polypropylene Body, 9.8 in L x 4 in W x 5 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$755.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Amperage Rating1.2
Body MaterialPolypropylene
Cord Length6 ft
Dimensions9.8 " L x 4 " W x 5 " H
Discharge Size1/2"
Flow Rate12.5
Frequency Rating60
HP Rating1/12
Impeller MaterialPolypropylene
IndustryPlumbing
Maximum Feet of Head21.9 ft
Maximum Temperature150
Model3-MD-SC
Phase1
Power Rating190
Speed Rating3000
Suction Size3/4"
Voltage Rating230
Working Pressure9.5
Additional Information
cCSAus Certified|UR Listed
Features & Benefits
- 1.1 specific gravity Nitrile O-ring Ball bearing 6 ft power cord with no plug
Documents
Marketing Information
The Little Giant 3-MD-SC chemical pump is designed to handle semi-corrosive chemicals and features leak-proof, seal less magnetic drives, and is designed for inline, non-submersible use. Volute, magnet housing, and impeller are made of glass filled polypropylene for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear resistance and trouble-free service. The washers do not revolve to prevent wear on the shaft.
Little GIANT® 581513 Magnetic Drive Pump, 12.5 gpm, 1.2 A, 230 VAC, 1/12 hp
BrandLittle GIANT®
MFG #581513
Keller #1155689
