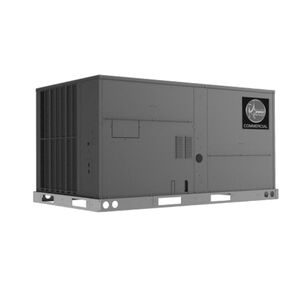

Rheem® K-Series™ KGB RHPCZR060AJT000AAAA0 Heat Pump Package Unit, 5 ton Nominal, 60000 Btu/hr Cooling, 4.96 kW, 49 A
MFG #RHPCZR060AJT000AAAA0
Item #1155834
Mfr. Part #RHPCZR060AJT000AAAA0
UPC #66202151148
Rheem® Heat Pump Package Unit, Commercial Classic® Series, 5 ton Nominal Capacity, 60000 Btu/hr Cooling BTU Rating, 208 to 230 VAC Voltage Rating, 49 A Amperage Rating, 4.96 kW Wattage, 1/2 hp, 1 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1050 rpm, 1075 rpm Rotational Speed, Scroll Compressor Type, 2000 cfm Rating, 14 SEER Rating, 8 Btu HSPF Rating, 11 EER Rating, 3/4 in Connection, R-410A Refrigerant Type, 1 Number of Stages, 83.3 dB Sound Level, Direct Standard Static Constant Torque Drive Type, 20 FPcm, 23 FPcm Fins per Inch, 2 x 16 x 16 in Filter Size, No Resistance Heat, 125 deg F Temperature Rating, 41-3/8 in H x 44-5/8 in W x 77-7/8 in D Dimensions
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$16,393.47 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandRheem®
Amperage Rating49
CFM Rating2000
Compressor TypeScroll
Connection Size3/4
Cooling BTU Rating60000
Dimensions41-3/8 " H x 44-5/8 " W x 77-7/8 " D
Drive TypeDirect Standard Static Constant Torque
EER Rating11
Filter Size2 x 16 x 16
Fins per Inch20 FPcm, 23 FPcm
Frequency Rating60
HP Rating1/2 hp, 1 hp
HSPF Rating8
Nominal Capacity5
Number of Stages1
Phase1
Refrigerant TypeR-410A
Resistance HeatNo
Rotational Speed1050 rpm, 1075 rpm
SEER Rating14
SeriesCommercial Classic
Sound Level83.3
Temperature Rating125
Voltage Rating208 to 230
Wattage4.96
Additional Information
cULus Listed|AHRI Certified|ASHRAE 90.1 2016
Features & Benefits
Factory charged with R-410A HFC refrigerant
Wired and run tested
Scroll compressors with internal line break overload and high pressure protection
Convertible airflow vertical down flow or horizontal side flow
Forkable base rails for easy handling and lifting
Cooling operation up to 125 deg F ambient
Micro channel evaporator and condenser coil
Overflow condensate sensor
PlusOne® diagnostics with dual seven segment LED display to meet code compliance
One-piece top cover and base pan with drawn supply and return opening
Two-piece control door
Quarter turn fasteners on filter access door
Color-coded and labeled wiring
External lockable gauge ports
TXV refrigerant metering system
Solid core liquid line filter drier
High pressure and low pressure/loss of charge protection with built-in Smart Logic
Insulation encapsulated throughout entire unit
New product footprint with matching connections
Improved factory lead times
A complete heating and cooling solution, Rheem® commercial packaged heat pumps deliver year round comfort for your business. Every model, regardless of efficiency level, was designed from the compressor up for quiet, efficient and long-lasting performance. And since the system is contained in one outdoor unit, it wont take up valuable indoor space.
Rheem® K-Series™ KGB RHPCZR060AJT000AAAA0 Heat Pump Package Unit, 5 ton Nominal, 60000 Btu/hr Cooling, 4.96 kW, 49 A
