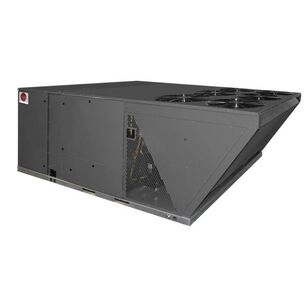

Rheem® B240DL RLNL-B240DL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 240000 Btu/hr Cooling BTU, 460 VAC
Rheem® B240DL RLNL-B240DL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 240000 Btu/hr Cooling BTU, 460 VAC
Rheem® Air Conditioner Package Unit, Series: RLNL-B, Model: B240DL, 15 to 25 ton Nominal Capacity, 240000 Btu/hr Cooling BTU Rating, 460 VAC, 52 A, 21.04 kW, 1/3 hp Condenser, 5 hp Blower Motor HP Rating, 1075 to 1725 rpm Rotational Speed, 60 Hz, 3 ph, (2) Scroll Compressor, 8000 cfm Rating, 11.4 IEER Rating, 11.1 EER, R-410A, 91 dBA, Belt Drive, Outdoor Coil - 53.3 sq-ft Face Area, 22 Fins/in, Indoor Coil - 26.67 sq-ft Face Area, 13 Fins/in Coil Rating, 60 A Fuse, Steel, G90 Galvanized, Powder-Painted, 152-1/16 in W x 57 in H x 85-29/32 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$54,552.68 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating52
CFM Rating8000
Coil RatingOutdoor Coil - 53.3 sq-' Face Area, 22 Fins/", Indoor Coil - 26.67 sq-' Face Area, 13 Fins/"
Compressor Type(2) Scroll
Cooling BTU Rating240000
Dimensions152-1/16 " W x 57 " H x 85-29/32 " D
Drive TypeBelt
EER Rating11.1
FinishG90 Galvanized, Powder-Painted
Frequency Rating60
Fuse Rating60
HP Rating1/3 hp Condenser, 5 hp Blower Motor
IEER Rating11.4
IndustryHVAC
MaterialSteel
ModelB240DL
Nominal Capacity15 to 25
Phase3
Refrigerant TypeR-410A
Rotational Speed1075 to 1725
SeriesRLNL-B
Sound Level91
Voltage Rating460
Wattage21.04
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified, Energy Star Certified
Features & Benefits
- Complete factory charged, wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow High pressure and low pressure/loss of charge protection standard on all models Solid core liquid line filter drier on each circuit One-slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies Cooling operation upto 125 deg F ambient Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream Slide out indoor fan assembly for added service convenience Powder paint finish meets ASTMB117 steel-coated on each side for maximum protection, G90 galvanized One-piece top cover and one-piece base pan with drawn supply and return opening for superior water management High performance belt drive motor with variable pitch pulleys and quick adjust belt system Permanently lubricated evaporator and condenser motors Condenser motors are internally protected, totally enclosed with shaft down design 2 in filter standard with slide-out design 24 V control system with resettable circuit breakers Future technical variations No resistance heat Safe filling capacity (SFC) ASTM B-117 Material Standard
Rheem® B240DL RLNL-B240DL000 Air Conditioner Package Unit, 15 to 25 ton Nominal, 240000 Btu/hr Cooling BTU, 460 VAC
BrandRheem®
MFG #RLNL-B240DL000
