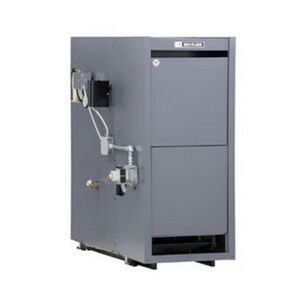

Weil-McLain® LGB, 2 Series LGB-4-S 133-044-304 Gas Fired Steam Knockdown Boiler, 85.1 % AFUE, Natural Gas Fuel
Weil-McLain® LGB, 2 Series LGB-4-S 133-044-304 Gas Fired Steam Knockdown Boiler, 85.1 % AFUE, Natural Gas Fuel
Weil-McLain® Gas Fired Steam Knockdown Boiler, LGB, 2 Series, Model: LGB-4-S, 85.1 % AFUE, 400000 Btu/hr Input, 312000 Btu/hr Output BTU, 23.2 gal Steam to Waterline, 36.5 gal Water Capacity, 6 in Supply, 5 in Return, 1-1/4 in Drain Connection, Natural Gas Fuel, Atmospheric (Chimney) Vent, Chimney/Breeching/Vent Size: 10 in ID x 20 ft H, Intermittent Electronic Ignition, Net BTU Rating: 234000 Btu/hr, 975 sq-ft Area, Cast-Iron, Dimensions: 50-3/8 in H x 21 in W x 64-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,793.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeil-McLain®
AFUE Rating85.1
Area975
BTU Rating400000 Btu/hr Input, 312000 Btu/hr Output
Capacity23.2 gal Steam to Waterline, 36.5 gal Water
Chimney/Breeching/Vent Size10 " ID x 20 ' H
Connection Type6 " Supply, 5 " Return, 1-1/4 " Drain
Dimensions50-3/8 " H x 21 " W x 64-1/2 " D
Fuel TypeNatural Gas
Ignition TypeIntermittent Electronic
IndustryHydronics
MaterialCast-Iron
ModelLGB-4-S
Net BTU Rating234000
SeriesLGB, 2 Series
Vent TypeAtmospheric (Chimney)
Additional Information
AHRI Certified, ASME Approved, CSA Certified
Features & Benefits
- Short draw rods permits faster easier assembly of boiler section Compact design allows for more piping and venting headroom Highest efficiency commercial cast iron atmospheric gas boiler Built-in air separator diverts air to the expansion tank Gas natural draft water and steam boiler with cast iron sections Factory assembled base and burners reduce installation time Simplified piping, the largest LGB steam boiler requires only two risers Built-in air separator in water boiler air is diverted to the expansion tank through a 1 in tapping next to supply outlet Steel jackets with durable powder-coated finish in Weil-McLain blue completely insulated designed for fast installation Gauge cocks, glass and guards 15 lb/sq-in ASME relief valve side outlet 10 years limited heat exchanger warranty 10 in draft hood outlet Compound pressure-vacuum gauge
Weil-McLain® LGB, 2 Series LGB-4-S 133-044-304 Gas Fired Steam Knockdown Boiler, 85.1 % AFUE, Natural Gas Fuel
BrandWeil-McLain®
MFG #133-044-304
Keller #1157886
My Part ##
Last Ordered#
$12,793.00 / ea
