NIBCO®

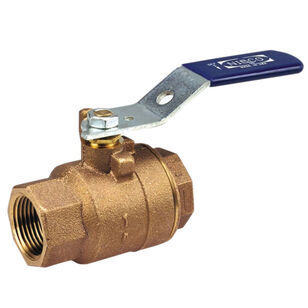

NIBCO® T-585-70 Series NL9510C Inline Ball Valve, 1-1/2 in, FNPT, Bronze, 600 psi
NIBCO®
NIBCO® T-585-70 Series NL9510C Inline Ball Valve, 1-1/2 in, FNPT, Bronze, 600 psi
MFG #NL9510C
Item #116133
Mfr. Part #NL9510C
UPC #039923677655
NIBCO® Inline Ball Valve, T-585-70 Series, 1-1/2 in Nominal, FNPT Connection, Full Port, 600 psi, Air, Gas, Water Media, Manual Actuator, 1-1/2 in Orifice, 4.72 in Inlet to Outlet Length, 3.16 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B124 C37700, ASTM B16 C36000, ASTM B371 C69300, ASTM B584 C84400, ASTM B99 C65100, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, PTFE Packing, Steel Handle, Brass Ball, RPTFE Softgoods, Contains Lead, Red, -20 to 400 deg F, 2.97 in Dia x 9.05 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$398.70 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor high pressure applications, HVAC, hot and cold domestic water, low pressure steam, and compressed air
Ball MaterialBrass
Body MaterialBronze
ColorRed
Connection TypeFNPT
Dimensions2.97 " Dia x 9.05 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.72
Material StandardASTM B124 C37700, ASTM B16 C36000, ASTM B371 C69300, ASTM B584 C84400, ASTM B99 C65100
MediaAir, Gas, Water
Nominal Size1-1/2
Operator TypeQuarter-Turn Lever Handle
Orifice Size1-1/2
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesT-585-70 Series
Softgoods MaterialRPTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating-20 to 400
Top to Inlet Center3.16
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve features thread ends for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
