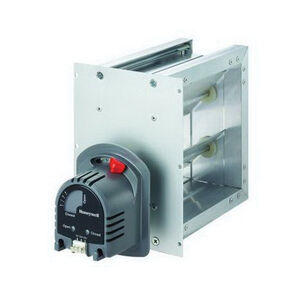

Honeywell ZD ZD20X24TZ Zone Damper, Rectangular, 71 in-oz
Honeywell ZD ZD20X24TZ Zone Damper, Rectangular, 71 in-oz
Honeywell Zone Damper, Model: ZD, Parallel Blade, Push Terminal Electrical Connection, 30 s Power Open, 10 s Spring Return Timing, 71 in-oz Torque, Extruded Aluminum, Bottom Mounting, Power Closed, Spring Open Motor, Motor Specifications: 24 VAC at 60 Hz, 8 VA, Rectangular Shape, 1 in-WC Maximum, 40 to 140 deg F Ambient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$973.47Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor control circulating air in HVAC systems with the TrueZONE and other electronic zoning systems
Blade TypeParallel
Electrical ConnectionPush Terminal
IndustryHVAC
MaterialExtruded Aluminum
ModelZD
Motor Specifications24 VAC at 60 Hz, 8 VA
Motor TypePower Closed, Spring Open
Mounting TypeBottom
Pressure Rating1 "-WC Maximum
ShapeRectangular
Temperature Rating40 to 140 deg F Ambient
Timing Range30 s Power Open, 10 s Spring Return
Torque Rating71
Features & Benefits
- Mechanical visual position indicator for damper status Solid construction frame and blades Blade designed for low leakage performance Simple, easy-to-wire, two wire installation Reliable, strong motor Fail safe, normally open operation Damper can be installed in any orientation Adjustable closed position range stops Solid (not stranded) wire is recommend for motor electrical connection Nominal angular rotation of motor is 90 deg M1 power, M6 common, M4 (optional) LED indication wires to motor
Honeywell ZD ZD20X24TZ Zone Damper, Rectangular, 71 in-oz
BrandHoneywell
MFG #ZD20X24TZ/U
Keller #1161399
