Legend Valve

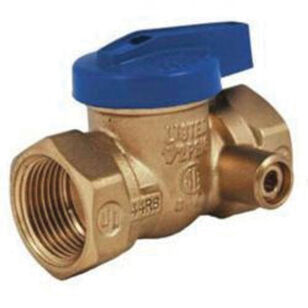

Legend Valve T-3100 Series 102-513 Blue Top Gas Ball Valve, 1/2 in, FNPT, 175 psi, Handle, Forged Brass
Legend Valve
Legend Valve T-3100 Series 102-513 Blue Top Gas Ball Valve, 1/2 in, FNPT, 175 psi, Handle, Forged Brass
MFG #102-513
Item #116213
Mfr. Part #102-513
UPC #662545001043
Legend Valve Blue Top Gas Ball Valve, T-3100 Series, 1/2 in Nominal, FNPT Connection, 175 psi, 0.4 in Opening, Handle Operator, NBR Seal, Forged Brass, 2.43 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$26.27Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Connection TypeFNPT
Dimensions2.43 " L
IndustryPlumbing
MaterialForged Brass
Nominal Size1/2
Opening Size0.4
Operator TypeHandle
Pressure Rating175
Seal MaterialNBR
SeriesT-3100 Series
Additional Information
ANSI Z21.15/B1.20.1|ASME B1.20.1|ASTM B124|UNS C37700|CSA Certified|MHKZ MH19347|UL 44R8|YQNZ MH19347/YRBX MH19347/YRPV MH19347
Features & Benefits
- Patented one piece forged brass body eliminates the possibility of seam leaks common to two piece body designs Equipped with an integral 1/8 in NPT tapped manometer test port and plug, eliminating the need for a separate test port fitting and shut-off valve near the appliance pilot assembly Chrome-plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas applications Quarter-turn, ball type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks The 175 psi pressure rating permits high-pressure air tests, without the grease seal blowout common to plug-type gas cocks Not suitable for steam service CSA certified for use with natural, manufactured, mixed, liquid petroleum and LP gas/air mixtures CSA certified 3-88 for use in 2 or 5 lb house piping systems Side taps
