ASSE 1017|CSA B125.3|ANSI/NSF 372|Reduction of Lead in Drinking Water Act S.3874|Vermont Act 193|cICC ES PMG Approved

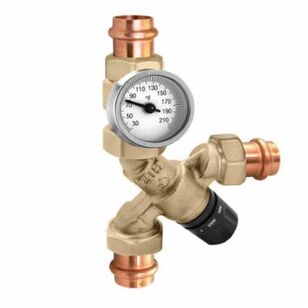

The Caleffi AngleMix™ 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily-mounts to the top of water heaters. The mixed temperature outlet is inline with the hot water inlet, facilitating trouble-free connection and reducing space required for installation. The AngleMix™ maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet. Also available as body only, for a wide variety of separately-ordered end connections, the angle-style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations. The valve has been specifically certified to ASSE 1017 and low-lead plumbing law by ICC-ES.
