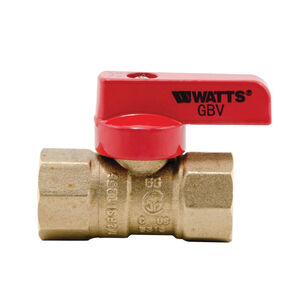

WATTS® GBV Series 0545007 Ball Valve, 1/2 in, FNPT, Brass, 5 psi
WATTS® GBV Series 0545007 Ball Valve, 1/2 in, FNPT, Brass, 5 psi
WATTS® Ball Valve, GBV Series, 1/2 in Nominal, FNPT Connection, 2-Piece, 5 psi, Gas, Oil, Water Media, 2-7/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, T-Handle Operator, Material Standard: AISI 1010, ASTM B86, ASTM B16, C36000, ASTM B124, C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Trim, PTFE Packing, Zinc Alloy Handle, Brass Ball, PTFE Softgoods, -20 to 125 deg F, 2-7/8 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$61.75 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor residential and commercial applications
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeFNPT
Dimensions2-7/8 " L
Domestic/ImportDomestic
Handle MaterialZinc Alloy
IndustryPlumbing
Inlet to Outlet Length2-7/8
Material StandardAISI 1010, ASTM B86, ASTM B16, C36000, ASTM B124, C37700
MediaGas, Oil, Water
Nominal Size1/2
Operator TypeT-Handle
Packing MaterialPTFE
Pressure Rating5
Seat MaterialPTFE
SeriesGBV Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating-20 to 125
Top to Inlet Center1-9/16
Trim MaterialPTFE
Additional Information
cCSAus Certified|NY288-92-E MEA|UL Listed
Features & Benefits
- Used for LP and natural gas in residential and commercial applications Complies with ANSI standards for gas piping Brass two-piece body construction UL approved at 5 psi (34.2 kPa) NPT female connections and T- handle
Documents
Marketing Information
Series GBV two-piece, brass gas ball valves are used in residential and commercial applications for manufactured natural gas and LP gas on in house and indoor piping systems. They feature a brass ball and stem, PTFE seats and packing, brass end piece and plug and zinc alloy handle. Series GBV complies with ANSI standards for gas piping and is UL, CSA and MEA approved.
WATTS® GBV Series 0545007 Ball Valve, 1/2 in, FNPT, Brass, 5 psi
BrandWATTS®
MFG #0545007
Keller #116362
