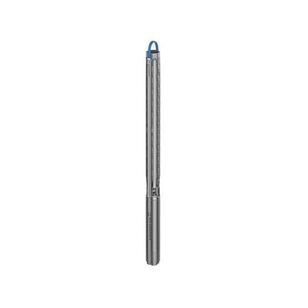

Grundfos 15B73603 Submersible Pump, 440/460/480 V, 16.6/16.8/17.4 A, 10 hp, 242 gpm, 2800 ft Max Feet of Head
Grundfos 15B73603 Submersible Pump, 440/460/480 V, 16.6/16.8/17.4 A, 10 hp, 242 gpm, 2800 ft Max Feet of Head
Grundfos Submersible Pump, Model: 230S100-3, 440/460/480 V, 16.6/16.8/17.4 A, 60 Hz Frequency, HP Rating: 10 hp, 3450 rpm Speed, 242 gpm Flow Rate, 3 ph Phase, 3 in NPT Discharge, Impeller Size: 3.87 in Dia, 82 % Efficiency, 2800 ft Maximum Feet of Head, 3 Stage, Axial, Radial Bearing, 870.23 psi Pressure, 104 deg F, Stainless Steel Impeller, Stainless Steel, Dimensions: 5.83 in Dia x 49.1 in H, Additional Information: Horizontal, Vertical Orientation, 118.1 ft Rated Head, 1.15 Service Factor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,302.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationHorizontal, Vertical Orientation, 118.1 ' Rated Head, 1.15 Service Factor
Amperage Rating16.6/16.8/17.4
Bearing TypeAxial, Radial
Dimensions5.83 " Dia x 49.1 " H
Discharge Size3 " NPT
Efficiency82
Flow Rate242
Frequency Rating60
HP Rating10
Impeller MaterialStainless Steel
Impeller Size3.87 " Dia
MaterialStainless Steel
Maximum Feet of Head2800
Model230S100-3
Number of Stages3
Phase3
Pressure Rating870.23
Speed Rating3450
Temperature Rating104
Voltage Rating440/460/480
Additional Information
AISI 304 Specified|DIN W.-Nr. 1.4301 Specified|EN 1.4301 Specified
Features & Benefits
- Octagonal discharge design ensures better engagement with a pipe wrench for easier and safer attachment to the drop pipe Screw-mounted cable guard attachment to ensure a secure fit Built-in check valve to minimize the risk of water hammering Corrosion-resistant, robust stainless steel construction - 304, 316, 904L Wear resistance via less abrasive wear octagonal bearings and sand flush channels that remove particles with the pumped water sand resistance is further increased by using the bearing offering longer life in sandy environments Optimized hydraulics ensure increased performance and higher efficiency FKM and PTFE parts make the SP suitable for aggressive water conditions Stop ring protects the pump in case of up thrust
Marketing Information
Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibers. Horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3 ph motor of the canned type with a sand shield, liquid lubricated bearings and pressure equalizing diaphragm.
Grundfos 15B73603 Submersible Pump, 440/460/480 V, 16.6/16.8/17.4 A, 10 hp, 242 gpm, 2800 ft Max Feet of Head
BrandGrundfos
MFG #15B73603
Keller #1164495
My Part ##
Last Ordered#
$7,302.00Â /Â ea
