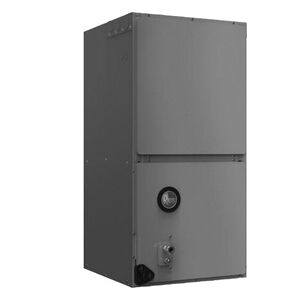

Rheem® RHMV2421MNACJA High Efficiency Modulating Air Handler, 18000 to 24000 Btu/hr, 800 cfm, 208/240 V, 2.9 A, 1/3 hp
Rheem® RHMV2421MNACJA High Efficiency Modulating Air Handler, 18000 to 24000 Btu/hr, 800 cfm, 208/240 V, 2.9 A, 1/3 hp
Rheem® High Efficiency Modulating Air Handler, RHMV Series, 18000 to 24000 Btu/hr Nominal Capacity, 208/240 V Voltage Rating, 2.9 A Amperage Rating, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 800 cfm Rating, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, ECM Motor Type, Steel, 42.5 in H x 21 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,457.96 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating2.9
CFM Rating800
Dimensions42.5 " H x 21 " W x 21-11/16 " D
Frequency Rating60
HP Rating1/3
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Motor TypeECM
Nominal Capacity18000 to 24000
Phase1
Refrigerant TypeR-410A
SeriesRHMV Series
Suction Line Size3/4
Voltage Rating208/240
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- The RHMV Air Handler is part of a new line of Rheem smart heating, cooling and water heating products. Features a constant CFM variable speed motor (ECM) which provides enhanced SEER performance. The RHMV is rated with RP17**H heat pumps. Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing. Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications. Factory-installed indoor coil. Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics. Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect. 2 ton [7.0 kW] through 4 ton [14.1 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep. All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure. Enhanced airflow up to .7" external static pressure. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193.
Rheem® RHMV2421MNACJA High Efficiency Modulating Air Handler, 18000 to 24000 Btu/hr, 800 cfm, 208/240 V, 2.9 A, 1/3 hp
BrandRheem®
MFG #RHMV2421MNACJA
Keller #1164762
My Part ##
Last Ordered#
$4,457.96 / ea
